3DEXPERIENCE Platform Security: 6 Essential Pillars

[techtips_featured_image_shortcode]

When engineering teams move product data and collaboration workflows to the cloud, one question inevitably comes up:

How secure is our data?

For organizations managing intellectual property, engineering designs and other sensitive information, cloud security is about much more than preventing unauthorized access. It also involves privacy, regulatory requirements, service availability, software quality and the responsible use of artificial intelligence.

Dassault Systèmes addresses these concerns through six areas highlighted in its Trust Center: Security, Regulatory Compliance, Quality, Privacy, Availability and Trusted AI.

These six pillars work together to create a broader framework for customer trust. At the same time, security in the cloud follows a shared responsibility model: Dassault Systèmes protects the platform and its underlying infrastructure, while customers remain responsible for how they configure and use the environment.

This article summarizes the key concepts discussed during our webinar on artificial intelligence, cloud computing and security on the 3DEXPERIENCE platform.

At a Glance: How Does 3DEXPERIENCE Approach Security?

The 3DEXPERIENCE platform’s cloud security approach combines security-by-design practices, vulnerability testing, incident response, privacy controls, quality management, resilient infrastructure and Trusted AI principles.

However, moving to the cloud doesn’t mean an organization can stop thinking about security.

Customers still need to manage their users, permissions, devices and data appropriately. Understanding where the provider’s responsibilities end, and where the customer’s responsibilities begin, is one of the most important parts of evaluating any cloud platform.

The Shared Responsibility Model

Before looking at the six pillars, it’s important to understand one fundamental concept: cloud security is a shared responsibility.

Dassault Systèmes’ Shared Responsibility Model defines the respective responsibilities of Dassault Systèmes and its customers for operational security and compliance.

Customer responsibilities include:

  • Customer data

  • Devices and endpoints

  • Identity and access management

Dassault Systèmes responsibilities include:

  • Applications

  • Operating systems

  • Virtualization

  • Physical resources such as compute, network and storage

  • Physical datacenters

The shared responsibility model

In practical terms, Dassault Systèmes is responsible for protecting the cloud service and the infrastructure that supports it. The customer remains responsible for deciding who should have access to its data, assigning appropriate permissions and securing the devices used to connect to the platform.

This distinction is critical.

A highly secure cloud platform cannot prevent an organization from giving a user more access than they need or failing to remove a former employee’s access.

The 6 Pillars of 3DEXPERIENCE Trust

1. Security

Security is the first layer that most organizations think about when evaluating a cloud platform—and for good reason.

Dassault Systèmes describes its approach as security by design, meaning security requirements are integrated into the software development and operational lifecycle rather than being added after the fact.

The security program includes measures such as:

  • Secure software development practices

  • Continuous threat monitoring

  • Vulnerability management

  • Static and dynamic application security testing (SAST and DAST)

  • Software composition analysis

  • Penetration testing

  • A private bug bounty program

  • Incident response through the Dassault Systèmes Computer Security Incident Response Team (CSIRT)

The 3DEXPERIENCE platform on the cloud also has security certifications and assessments, including ISO/IEC 27001:2022 and ISO/IEC 27017:2015 certifications.

The goal isn’t to rely on a single security mechanism, but to use multiple layers of protection throughout the platform lifecycle.

2. Regulatory Compliance

Security and compliance are closely related, but they aren’t the same thing.

Organizations operating in industries such as aerospace, automotive, life sciences, medical devices or other regulated environments may have specific requirements for how information is stored, processed and managed.

The Dassault Systèmes Trust Center provides information about applicable certifications, regulatory requirements and compliance programs. Current resources include information related to regulations such as the EU Data Act, NIS2, the Cyber Resilience Act and DORA.

However, there’s an important distinction:

A vendor’s certification does not automatically make a customer compliant.

Organizations still need to determine which requirements apply to their own industry, jurisdiction and processes, and then configure and use the platform accordingly.

The Trust Center is therefore an important resource for IT, security, legal, quality and compliance teams evaluating 3DEXPERIENCE.

3. Quality

Security isn’t the only factor that determines whether a cloud platform can be trusted.

Software quality, development practices and continuous improvement also play an important role.

Dassault Systèmes maintains a Quality Management System (QMS) designed to embed quality throughout the software development lifecycle. The QMS governing the 3DEXPERIENCE platform is certified to ISO 9001:2015 for activities including design, development, deployment, cloud operations and support.

For organizations operating in regulated environments, quality management can also support requirements around validation, traceability and controlled processes.

In other words, trust isn’t simply about keeping unauthorized users out. It’s also about having structured processes designed to deliver reliable software and continuously improve it.

4. Privacy

Security protects information from unauthorized access, while privacy focuses on how personal information is collected, processed and managed.

Dassault Systèmes maintains a Data Privacy Program that includes dedicated governance, employee training and technical and organizational measures. The 3DEXPERIENCE platform on the cloud is also certified to ISO/IEC 27701:2019 for privacy information management and ISO/IEC 27018:2019 for controls related to personally identifiable information in public cloud services.

Privacy requirements can vary depending on the type of information involved and the jurisdictions in which an organization operates.

For that reason, companies should consider questions such as:

  • What personal information is being processed?

  • Why is it being collected?

  • Who has access to it?

  • Where is it processed?

  • Which privacy regulations apply?

Understanding these questions is particularly important when engineering organizations collaborate with customers, suppliers or other external stakeholders.

5. Availability

Security is only useful if your team can access the platform when it needs to.

3DEXPERIENCE cloud availability relies on cloud operations, monitoring, resilient infrastructure and redundancy mechanisms designed to support service continuity. Dassault Systèmes also provides customers with access to cloud status and maintenance information through the Health Console.

The platform’s infrastructure is distributed across multiple geographic regions, with 3DEXPERIENCE data centers listed across the Americas, Europe and Asia-Pacific.

Availability is also another example of shared responsibility.

A cloud provider can maintain resilient infrastructure, but customers still need to consider their own internet connectivity, endpoint devices, authentication processes and internal business continuity procedures.

3DEXPERIENCE cloud availability

6. Trusted AI

Artificial intelligence introduces another dimension to the question of trust.

As AI becomes increasingly integrated into engineering and collaboration workflows, organizations need to understand not only what AI can do, but also how it is governed.

Dassault Systèmes’ Trusted AI approach is based on six principles:

  • Human supervision and control

  • Robustness, security and privacy

  • Intellectual property and data protection

  • Transparency and explainability

  • Inclusivity and equity

  • Sustainability

Dassault Systèmes' Trusted AI approach is based on six principles:

The emphasis on human supervision is particularly relevant for engineering.

AI can assist with tasks such as finding information, summarizing content, automating selected activities and supporting decision-making. However, users remain responsible for reviewing and validating the results appropriate to their use case.

Dassault Systèmes also publishes documentation describing the intended purpose of individual AI-based functionalities, providing greater transparency about how AI is incorporated into its solutions.

What about customer data and AI?

This is one of the most important questions organizations should ask when evaluating AI features.

Rather than making a blanket assumption about how customer information is handled, organizations should review the specific AI functionality, applicable contractual terms, data governance documentation and hosting environment involved.

Dassault Systèmes states that its AI capabilities are governed through privacy-by-design and security-by-design principles, with controls intended to protect confidentiality, integrity and intellectual property.

Because AI functionality and terms can evolve, reviewing the current documentation for the specific capability being deployed is the best way to evaluate how your organization’s data will be handled.

Why Does This Matter to Small and Mid-Sized Businesses?

Security can be particularly challenging for small and mid-sized organizations.

Maintaining an on-premises infrastructure requires resources for servers, operating system updates, security patches, backups, monitoring, access management and incident response.

Moving to a cloud platform doesn’t eliminate those responsibilities entirely, but it changes where they sit.

A cloud provider can take responsibility for a significant portion of the underlying infrastructure and operational security. The customer can then focus its resources on the areas it directly controls, such as:

  • User identities and permissions

  • Data governance

  • Endpoint security

  • Employee awareness

  • Internal procedures

  • Business continuity

This division of responsibility can be an important consideration when comparing cloud and on-premises environments.

10 Questions to Ask Before Adopting 3DEXPERIENCE Cloud

Before moving engineering data to the cloud, organizations should consider:

  • What types of data will be stored on the platform?

  • Who should be able to view, modify or share that data?

  • How will user roles and permissions be managed?

  • How will access be reviewed and removed when employees leave?

  • Are appropriate security measures enabled on user devices?

  • Which regulatory or certification requirements apply to our organization?

  • Where will our data be hosted and processed?

  • Which AI capabilities do we plan to use?

  • What contractual and data governance terms apply to those AI capabilities?

  • Have our IT, security, legal and quality teams reviewed the relevant Trust Center documentation?

These questions can help turn a general discussion about “cloud security” into a practical evaluation of your organization’s actual requirements.

Building Trust in Cloud-Based Engineering

3DEXPERIENCE security isn’t based on a single feature or certification.

It is the result of multiple technical, organizational and governance practices working together, from secure software development and vulnerability testing to privacy, quality management, resilient infrastructure and responsible AI.

Just as importantly, security is a shared responsibility.

The better question isn’t simply:

“Is the cloud secure?”

Instead, organizations should ask:

“What protections does the provider implement, what responsibilities remain with us, and how will we manage our data and users every day?”

Understanding those responsibilities is the first step toward making an informed decision about cloud-based engineering.

Want to evaluate how 3DEXPERIENCE could fit into your organization’s security, collaboration and data management requirements? Contact the Solidxperts team to discuss your environment and requirements.

FAQ

Is the 3DEXPERIENCE platform secure?

The platform uses multiple security measures, including security-by-design practices, vulnerability testing, threat monitoring, incident response and resilient cloud infrastructure. However, overall security also depends on how customers manage their users, data, devices and access rights.

Who is responsible for security in 3DEXPERIENCE Cloud?

Security follows a shared responsibility model. Dassault Systèmes is responsible for the applications and underlying cloud infrastructure, while customers remain responsible for their data, devices/endpoints and identity and access management.

Does Dassault Systèmes perform vulnerability testing?

Yes. Its security program includes SAST, DAST, software composition analysis, penetration testing and a private bug bounty program.

Can 3DEXPERIENCE support regulated organizations?

The platform and Dassault Systèmes’ broader Trust Center include certifications, assessments and compliance resources that can support organizations with regulatory requirements. However, organizations must determine which requirements apply to their specific industry, region and use case.

Does AI replace the engineer?

No. Dassault Systèmes’ Trusted AI principles emphasize human supervision and control. AI is intended to support people and their decision-making, while appropriate human oversight remains important.

Where can I find more information about 3DEXPERIENCE security?

The Dassault Systèmes Trust Center provides current information about security, privacy, quality, regulatory compliance, availability and Trusted AI, including certifications, assessments and other resources.


Michael Habrich

3DEXPERIENCE Specialist

X_green_halo

Any questions? Need help? Ask one of our experts.

Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

    AI in SOLIDWORKS: What’s New in FD03

    BLOG

    AI in SOLIDWORKS: What’s New in FD03

    [techtips_featured_image_shortcode]

    SOLIDWORKS AI in FD03: Meet LEO, Your New Engineering Assistant

    Artificial Intelligence in SOLIDWORKS continues to evolve at an impressive pace. While FD02 introduced several AI-powered tools, FD03 changes the experience entirely by making AI conversational.

    Instead of opening separate commands or navigating multiple PropertyManagers, many of SOLIDWORKS’ newest AI capabilities are now accessed through LEO, the new SOLIDWORKS AI Virtual Companion.

    Meet LEO

    Think of LEO as an engineering assistant built directly into SOLIDWORKS. Rather than replacing engineers or making design decisions for you, it helps automate repetitive tasks, answer technical questions, and simplify complex workflows using natural language.

    Let’s take a look at everything that’s new in SOLIDWORKS FD03.

    LEO Is Becoming the New Way to Work in SOLIDWORKS

    One trend immediately stands out in FD03.

    Rather than adding another collection of disconnected AI tools, Dassault Systèmes is building a single conversational interface that ties everything together.

    Need to generate a macro?

    Ask LEO.

    Need to simplify an assembly?

    Ask LEO.

    Need to create a drawing?

    Ask LEO.

    Ask LEO.

    Instead of memorizing commands or digging through menus, you’re increasingly able to describe what you want using plain language.

    This isn’t about replacing engineering expertise. It’s about reducing the number of clicks between an idea and the result.

    Smarter CAD Editing with Intent to CAD

    One of the biggest improvements in FD03 is the continued evolution of Intent to CAD.

    The BREP to Parametric CAD capability introduced in FD02 is now integrated directly into LEO.

    Imported STEP and IGES files are often nothing more than non-parametric geometry, making them difficult to modify without manually rebuilding features.

    Now, simply ask LEO to convert imported geometry into an editable feature-based SOLIDWORKS model.

    This is particularly useful for:

    • Reverse engineering projects

    • Supplier CAD

    • Customer-supplied models

    • Legacy CAD data

    Instead of rebuilding models from scratch, engineers can begin making design changes almost immediately.

    Smarter CAD Editing with Intent to CAD

    Engineering Guidance Gets Much Smarter

    FD03 dramatically expands the number of engineering tasks LEO can assist with.

    Rather than acting like a search tool, LEO now becomes an active design assistant throughout the modeling process.

    Generate SOLIDWORKS Macros

    Automation has traditionally required knowledge of VBA programming.

    Now you simply describe the task you’d like to automate.

    Examples include:

    • Rename every configuration

    • Export every drawing sheet as a PDF

    • Rename selected files

    • Batch update custom properties

    LEO generates the VBA macro automatically and opens it directly in the editor, where you remain in complete control before running it.

    For many users, this will be their first practical introduction to SOLIDWORKS automation.

    Generate SOLIDWORKS Macros

    Surface Area Reports

    Need to know how much paint or coating a model requires?

    Rather than manually measuring geometry, LEO can calculate:

    • Entire part surface area

    • Selected bodies

    • Individual faces

    • Face groups by colour

    It’s a small feature that could save a surprising amount of time in manufacturing workflows.

    Surface Area Reports

    Scale Assist

    Scaling parts has always been possible.

    Scaling them while keeping dimensions meaningful has been another story.

    Scale Assist regenerates dimensions after resizing so drawings continue reflecting the actual model dimensions instead of scaled values.

    It’s particularly useful when adapting existing designs into different product sizes.

    Natural Language Selection

    Anyone who’s spent time selecting dozens, or hundreds, of faces knows how tedious it can become.

    Now you can simply tell LEO what you need.

    Examples include:

    Select every red face.

    Select all visible sheet metal bodies.

    Select all cylindrical faces.

    Less clicking.

    Fewer mistakes.

    Faster workflows.

    Material Appearance Manager

    Introduced in FD02 and expanded in FD03, Material Appearance Manager now works through conversational prompts.

    Instead of manually editing appearances one feature at a time, LEO can identify, highlight and update materials throughout assemblies while maintaining visual consistency.

    Material Appearance Manager

    Equation Assistant

    Writing equations inside SOLIDWORKS has never been difficult, but remembering the correct syntax certainly can be.

    Equation Assistant allows engineers to describe the relationship they want.

    LEO creates the equation, validates the syntax and even helps troubleshoot errors before they’re applied.

    Equation Assistant

    Expert SOLIDWORKS Guidance

    Perhaps one of the most underrated additions is Expert Guidance.

    Instead of searching the Help documentation or the internet, LEO provides modelling recommendations based on SOLIDWORKS best practices directly inside your workflow.

    For newer users, it’s almost like having a CSWA-level mentor available whenever you need one.

    Expert SOLIDWORKS Guidance

    AI Makes Drawing Creation Even Easier

    Drawing automation continues to improve significantly.

    FD02 introduced Auto-Generate Drawings.

    FD03 transforms it into a conversational workflow.

    Instead of navigating dozens of PropertyManagers, you simply tell LEO what you want.

    LEO can now:

    • Create drawing views

    • Change view scales

    • Position views

    • Rotate views

    • Adjust line weights

    • Insert annotations

    • Generate flat patterns

    • Create bend tables

    • Export DXF

    • Export PDF

    The goal isn’t to replace engineering review.

    It’s to eliminate the repetitive setup work that consumes so much time.

    AI Makes Drawing Creation Even Easier

    Automatic Assembly Instructions

    Another brand-new capability is Assembly Instruction Generation.

    Using your existing CAD data, LEO can automatically generate step-by-step assembly instructions complete with visual snapshots.

    Potential applications include:

    • Manufacturing work instructions

    • Service documentation

    • Training manuals

    • Assembly guides

    Documentation has traditionally been one of the least enjoyable parts of engineering.

    This feature could dramatically reduce that workload.

    Automatic Assembly Instructions

    Smarter Large Assembly Management

    FD03 also builds on the Assembly Performance improvements introduced in FD02.

    Instead of simply identifying performance issues, LEO can now actively recommend solutions.

    Thread Simplification

    Modeled threads consume significant system resources.

    LEO can identify imported fasteners with modeled threads and convert them into cosmetic threads while preserving drawing representation.

    The result is smaller files and noticeably faster assembly performance.

    Thread Simplification

    AI-Guided SpeedPak Creation

    SpeedPak has always been one of SOLIDWORKS’ most powerful large assembly tools.

    Many users simply aren’t sure when, or how, to use it effectively.

    LEO now recommends appropriate SpeedPak strategies based on your assembly structure and automatically generates them for you.

    For companies working with large assemblies every day, this could become one of the most valuable additions in FD03.

    AI-Guided SpeedPak Creation

    PLM Information Without Leaving SOLIDWORKS

    For customers using Cloud Services or the 3DEXPERIENCE platform, LEO continues to bridge the gap between CAD and PLM.

    Rather than navigating multiple dashboards, you can simply ask questions like:

    • Who owns this file?

    • What revision is it?

    • Are there pending approvals?

    • What configurations exist?

    • Are there open change actions?

    It’s another example of AI reducing navigation while making information easier to access.

    What FD03 Means for SOLIDWORKS Users

    If FD02 introduced AI-powered tools, FD03 introduces an AI-powered workflow.

    LEO is gradually becoming the central interface for interacting with SOLIDWORKS, allowing engineers to work more naturally using conversation instead of commands.

    More importantly, SOLIDWORKS continues to take a practical approach to AI.

    None of these features attempt to replace engineers.

    Instead, they focus on reducing repetitive work, improving productivity, and helping users get more value from SOLIDWORKS without changing the way they already design.

    That’s exactly where AI delivers the greatest benefit.

    Ready to Explore SOLIDWORKS AI?

    Many of the features introduced in FD03 are available as part of the latest SOLIDWORKS Design Functional Delivery, with additional capabilities continuing to roll out throughout the year.

    At Solidxperts, we’re continuously testing the latest AI enhancements so we can help our customers understand not just what’s new, but how to apply these tools to real engineering projects.

    Whether you’re looking to modernize your design workflow, improve productivity, or simply explore what AI can do inside SOLIDWORKS, our team is here to help.


    Michael Habrich

    3DEXPERIENCE Specialist

    X_green_halo

    Any questions? Need help? Ask one of our experts.

    Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

      SOLIDWORKS AI: Auto-generate SOLIDWORKS Macros

      BLOG

      SOLIDWORKS AI: Auto-generate SOLIDWORKS Macros

      [techtips_featured_image_shortcode]

      Editor’s Note (Updated): This article captures our initial observations after discovering the AI Macro Generation interface in an early SOLIDWORKS 2026 release. Since then, the feature has been officially introduced in SOLIDWORKS 2026 FD03. We’ve left this article online for historical context, but we recommend reading our updated guide for the most current information and feature walkthrough.

      Is SOLIDWORKS About to Generate Macros for You?

      If you’ve been exploring the latest updates in SOLIDWORKS 2026 SP2.1 and 3DEXPERIENCE FD02, you might have noticed something… unexpected.

      Buried under Tools > Macro, there’s a new option:
      “Auto-generate”, complete with the AURA logo.

      At first glance, it doesn’t do much (yet). But it raises an interesting question:

      👉 Is SOLIDWORKS getting ready to generate macros for you using AI?

      Let’s take a closer look at what’s going on, and what it could mean for your day-to-day work.

      What We Found in the Interface

      Here’s where things get interesting.

      Inside the Macro menu, alongside familiar options like Record and Edit, there’s now:

      • Auto-generate

      • Marked with the AURA icon

      At the same time, digging into the AI Labs tab reveals something even more telling:

      Macro Generation listed as a competency

      That’s not placeholder language. That’s a capability label.

      So… What Is AURA, Exactly?

      If you’ve followed recent updates on the 3DEXPERIENCE platform, you’ve probably heard of AURA.

      AURA is Dassault Systèmes’ push into context-aware AI assistance, not just generating content, but actually:

      • Understanding what you’re doing

      • Anticipating next steps

      • Helping automate repetitive tasks

      In other words, it’s not just “AI for show.” It’s meant to sit inside your workflow.

      Macro generation fits that direction perfectly.

      Why This Matters (More Than It Looks)

      Let’s be honest, macros in SOLIDWORKS are powerful, but:

      • Most users don’t write them

      • Many rely on recorded macros (which are fragile)

      • Editing VBA code isn’t exactly user-friendly

      Now imagine this instead:

      👉 You describe what you want:

      “Rename all selected components using this convention”

      👉 And SOLIDWORKS builds the macro for you.

      That’s the gap this feature is aiming to close.

      What AI Macro Generation Could Look Like

      While the feature isn’t active yet, we can make some realistic assumptions based on current AI direction:

      1. Prompt-Based Automation

      You type a request, similar to how you interact with AI tools today.

      2. Context Awareness

      Instead of generic scripts, it understands:

      • Assembly structure

      • Selected components

      • Active document type

      3. Editable Output

      It likely generates:

      • VBA macros (initially)

      • Possibly with explanations or annotations

      4. Iterative Refinement

      Not quite right? Adjust the prompt instead of rewriting code.

      Is This Feature Live Yet?

      Short answer: No, not fully.

      Right now:

      • The Auto-generate option appears in the UI

      • But doesn’t execute (at least in SP2.1 environments we’ve tested)

      This strongly suggests:

      • It’s either feature-gated

      • Or not yet connected to backend AI services

      So no, you’re not missing a setting, it’s just not ready.

      Not an Easter Egg, A Direction

      It’s tempting to think this was accidentally left in the UI.

      But given:

      • The AURA branding

      • The AI Labs “Macro Generation” competency

      • The broader AI rollout in FD02

      This looks intentional.

      👉 More likely: a preview of what’s coming next

      What This Means for SOLIDWORKS Users

      If (or when) this becomes active, it could shift how teams approach automation:

      Less Dependency on API Expertise

      You won’t need to:

      • Learn VBA

      • Dig through API documentation

      Faster Process Standardization

      Teams could quickly:

      • Build repeatable workflows

      • Enforce naming conventions

      • Automate tedious cleanup tasks

      Lower Barrier to Entry

      More users can leverage automation, not just power-users.

      A Practical Example

      Let’s say your team regularly:

      • Imports vendor models

      • Needs to clean up feature trees

      • Apply materials

      • Rename files

      Today:

      • That’s either manual

      • Or handled by a fragile macro

      With AI macro generation:

      You could describe the workflow once, and reuse it reliably.

      Where This Fits in the Bigger Picture

      This isn’t happening in isolation.

      Dassault Systèmes is clearly moving toward:

      • AI-assisted modeling

      • Context-aware recommendations

      • Automation without coding

      Macro generation is just one piece of that puzzle.

      Should You Be Excited?

      Cautiously yes.

      But with realistic expectations:

      • First versions will likely be limited

      • Output may need validation

      • Complex workflows might still require manual refinement

      Still, even a 50% time savings on repetitive tasks is meaningful.

      Final Thoughts

      Right now, the Auto-generate macro button is more promise than product.

      But it tells us something important:

      👉 SOLIDWORKS isn’t just adding AI features, it’s rethinking how users interact with automation.

      And if this lands the way it’s intended, it could make one of the most underused features in SOLIDWORKS… actually usable.

      Want to Stay Ahead of What’s Coming?

      At Solidxperts, we keep a close eye on updates like this—not just what’s announced, but what’s emerging.

      If you want help:

      • Identifying automation opportunities

      • Preparing your team for AI-assisted workflows

      • Or getting more out of your SOLIDWORKS environment

      Reach out at info@solidxperience.com, we’re always happy to talk shop.


      Michael Habrich

      3DEXPERIENCE Specialist

      X_green_halo

      Any questions? Need help? Ask one of our experts.

      Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

        SOLIDWORKS vs. Inventor: Which CAD Software Is Better for Mechanical Design?

        BLOG

        SOLIDWORKS vs. Inventor: Which CAD Software Is Better for Mechanical Design?

        [techtips_featured_image_shortcode]

        Meet the Contenders

        SOLIDWORKS is Dassault Systèmes’ desktop CAD platform, purpose-built for mechanical product design from day one. It covers everything from concept sketching through detailed part and assembly modeling, simulation, rendering, and production-ready drawings. Its ecosystem (PDM, Simulation, CAM, Visualize) is tightly integrated, and its user community is one of the largest in the engineering world. SOLIDWORKS excels in consumer products, complex surfacing, weldments, sheet metal, and any project where design intent needs to be communicated clearly across teams.

        By comparison, Autodesk Inventor is a professional-grade 3D mechanical design tool built around parametric modeling, simulation, and tooling design. It lives inside the broader Autodesk ecosystem (AutoCAD, Vault, Fusion 360) and has traditionally been strong in large-assembly industrial equipment, structural frame design, and manufacturing workflows that lean heavily on AutoCAD-derived 2D documentation. If your shop grew up on AutoCAD, Inventor feels like a natural next step into 3D.

        Where each shines at a glance:

        When it comes to large structural frames and weldments, both platforms are competent and will get the job done.

        However, the similarities start to diverge from there. Inventor’s standout advantage is its deep interoperability with AutoCAD. SOLIDWORKS, on the other hand, pulls ahead in nearly every other category that matters to a mechanical designer. It offers significantly stronger tools for consumer product design and complex surfacing, where Inventor’s capabilities feel limited by comparison. In addition, sheet metal workflows are more mature and production-ready in SOLIDWORKS, and its desktop simulation tools go deeper without needing to leave the modeling environment. Finally, the SOLIDWORKS community and library of learning resources dwarfs what’s available on the Inventor side,  a real advantage when you’re troubleshooting an unfamiliar workflow or trying to push the software into new territory.

        Mechanical Design: Strengths & Weaknesses

        Why You Might Choose SOLIDWORKS

        Strengths:

        • Intuitive Sketch & Feature Workflow: SOLIDWORKS was designed from the ground up around a sketch-then-feature paradigm that just makes sense for mechanical parts. The FeatureManager tree is logical, sketch relations are visual and predictable, and the software rarely fights you when you need to go back and edit an early feature. Design intent stays intact, changes are easily made and automatic updating of not just parts but also assemblies really show the full power of parametric design.

        • Simulation Integration (SOLIDWORKS Simulation): Running FEA, thermal, fatigue, or flow studies without leaving the modeling environment is a massive time-saver. You don’t export, re-mesh, and re-apply loads in a separate tool. You right-click your assembly, set up a study, and iterate. For mechanical designers who need to validate before prototyping, this tight loop is invaluable.

        • Sheet Metal & Weldments: SOLIDWORKS’ sheet metal tools handle complex bends, forming tools, lofted bends, and flat-pattern exports with a maturity that Inventor still chases. Weldment profiles, cut lists, and trim/extend operations are clean and production-ready. If your shop cuts, bends, and welds steel daily, SOLIDWORKS speaks your language fluently.

        Weaknesses:

        • Large Assembly Performance: SOLIDWORKS can struggle with very large assemblies (10,000+ components) unless you’re disciplined about using Lightweight mode, SpeedPak configurations, and large design review mode. Inventor historically handles brute-force large assemblies with slightly less pain out of the box, though the gap has narrowed.

        • Data Management Cost & Complexity: SOLIDWORKS PDM Professional is powerful but adds significant licensing cost and IT overhead (SQL Server, dedicated vault server, client deployments). For smaller shops, the jump from file-folder chaos to a properly managed PDM environment is steep, both financially and administratively.

        • Subscription Pricing Pressure: Dassault’s push toward subscription and the 3DEXPERIENCE platform has created uncertainty for long-time perpetual-license users. The cost trajectory is upward, and some features are being nudged toward cloud-connected workflows that not every mechanical design shop is ready for.

        Why You Might Choose Autodesk Inventor

        Strengths:

        • Frame Generator & Bolted Connections: Inventor’s Frame Generator is genuinely excellent. You pick a structural profile from a library, sketch a skeleton, and the tool builds the frame with automatic mitre cuts, end treatments, and a BOM that’s ready for fabrication. For anyone designing conveyor systems, machine guards, or structural steel, this workflow is fast and reliable.

        • AutoCAD & Vault Integration: If your company has decades of AutoCAD legacy data, Inventor reads and references DWG files natively. Vault (Autodesk’s data management tool) ties Inventor models and AutoCAD drawings together without format translation headaches. That continuity matters when you’re maintaining equipment that was first drawn in AutoCAD R14.

        • iLogic Rules-Based Design: Inventor’s iLogic lets you embed design rules directly into parts and assemblies without needing a full API. For configurable products (think: custom conveyor lengths, bracket sizes, or enclosure variants), iLogic can drive dimensions, suppress features, and swap components based on simple if/then logic. It lowers the barrier to automation compared to writing full macros.

        Weaknesses:

        • Surfacing Tools Are Limited: When a mechanical design crosses into organic shapes, blends, or consumer-product aesthetics, Inventor’s surfacing toolkit feels thin. You’ll hit walls trying to create complex curvature-continuous surfaces that SOLIDWORKS handles with relative ease.

        • Drawing Environment Feels Dated: Despite improvements over the years, Inventor’s drawing environment still carries quirks inherited from AutoCAD thinking. Balloon management, BOM customization, and view annotation can feel clunky compared to the more streamlined SOLIDWORKS drawing workflow, especially on assemblies with hundreds of components.

        • Smaller Ecosystem & Community: Finding a quick answer to an obscure Inventor problem takes longer. The forums are active but smaller, third-party add-ins are fewer, and training content (especially advanced topics) is less abundant. When you’re stuck at 4 PM on a Friday with a deadline, community size matters.

        Why SOLIDWORKS Wins for Mechanical Design

        After years on both platforms, I made the switch to SOLIDWORKS a decade ago and never looked back.

        Here’s the honest reason: SOLIDWORKS thinks like a mechanical designer. Every tool, menu, and workflow feels like it was built by someone who has actually sat at a drafting board trying to communicate a design to a machinist or a fabricator.

        Inventor is capable, genuinely capable, but it often feels like a 3D layer bolted onto an AutoCAD philosophy, that is slowly being left behind as autodesk focuses more on Fusion 360. It offers features that designers may not be geared to designers like 3d studio meant for animation studios, factory design utilities are specific to manufacturing engineers not designers and BIM capabilities meant for a very specific user group. SOLIDWORKS was born 3D-native, and that DNA shows in every interaction with meaningful tools for designers like, toolbox, design checker, tolerance analyst, interference checking, collision detection, surface flattening, and pipe, tube and electrical routing.

        Beyond the general feel, two features specifically set SOLIDWORKS apart:

        Feature 1: Design Intent Through Configurations

        SOLIDWORKS’ Configuration system is remarkably powerful for mechanical design. A single part file can represent an entire family of components, different lengths, bore sizes, material thicknesses, all driven by a design table or manual configuration switches. This isn’t just convenience; it’s how real mechanical products work. A bracket comes in five sizes. A shaft has three keyway options. Configurations let you model that reality once and maintain it in one place. Inventor’s iPart/iAssembly approach is similar in concept but clunkier in execution, especially when configurations interact with drawings, BOMs, and PDM.

        Feature 2: The Drawing-to-Model Associativity

        SOLIDWORKS drawings are not just views of a model. They are live, bidirectional windows into it. You can dimension a feature in the drawing and drive the model from there. Annotations, tolerances, and GD&T travel with the model as MBD (Model-Based Definition) data. For a mechanical designer whose deliverable is ultimately a production drawing or a 3D-annotated model sent to a CNC shop, this associativity means fewer errors, faster ECOs, and less time reconciling what the drawing says versus what the model actually is.

        The Bottom Line

        Both tools will get parts designed and drawings out the door. But if your world is mechanical product design, parts, assemblies, drawings, simulation, and manufacturing communication, SOLIDWORKS offers a tighter, more intuitive experience. Fewer interface sections offer a more user friendly experience, with sheet metal and weldments all being able to be done in the part environment. Inventor has around 6 different environments with different specific uses. Solidworks tries to evolve the way mechanical designers actually think making it one of the most widely used CAD programs in a variety of different markets and disciplines.

        Ready to see whether SOLIDWORKS is the right fit for your mechanical design workflow? Contact the Solidxperts team to discuss your needs and explore the best solution for your business.


        Edward Ricciardi

        Solutions Specialist

        X_green_halo

        Any questions? Need help? Ask one of our experts.

        Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

          Uninstalling 3DEXPERIENCE SOLIDWORKS and the SOLIDWORKS Connector

          BLOG

          Uninstalling 3DEXPERIENCE SOLIDWORKS and the SOLIDWORKS Connector

          [techtips_featured_image_shortcode]

          Both 3DEXPERIENCE SOLIDWORKS (SOLIDWORKS Connected) and the Design with SOLIDWORKS connector can be removed directly from the 3DEXPERIENCE platform. If platform access is no longer available, they can also be uninstalled through Windows.

          Below are the recommended methods, starting with the simplest approach.

          Option 1: Uninstall from the 3DEXPERIENCE Platform

          This is the preferred method when you still have access to your 3DEXPERIENCE tenant.

          1. Log in to the 3DEXPERIENCE platform.

          2. Click the Compass (image) icon in the upper-left corner.

          3. Under My Roles, select:

            • 3DEXPERIENCE SOLIDWORKS (for SOLIDWORKS Connected), or

            • Collaborative Designer for SOLIDWORKS (for the Design with SOLIDWORKS connector)

          Steps for uninstalling 3DEXPERIENCE SOLIDWORKS components

          4. Locate the SOLIDWORKS app under the selected role.

          5. Click the down arrow next to the app and select Uninstall.

          ### **Alt text (EN)** Steps to uninstall 3DEXPERIENCE SOLIDWORKS components on Windows

          You’ll be prompted to confirm the uninstall twice. Confirm both messages to proceed.

          User interface showing SOLIDWORKS Connector uninstallation processInterface showing the progress of uninstalling the SOLIDWORKS Connector in 3DEXPERIENCE SOLIDWORKS on Windows

          Once complete, a confirmation message will appear at the bottom of the apps window indicating the uninstall was successful.

          Uninstall Progress Window for SOLIDWORKS Connector in 3DEXPERIENCE

          Option 2: Uninstall from the Windows Control Panel

          If access to the 3DEXPERIENCE platform has been discontinued, you can uninstall using Windows.

          1. Open the Windows Control Panel

            • The quickest way is to click Start and search for Control Panel

          2. Select Uninstall a program

            • If using icon view, go to Programs and Features

          Window showing the progress of removing the SOLIDWORKS Connector in 3DEXPERIENCE SOLIDWORKS on Windows

          3. Locate one of the following:

            • Dassault Systèmes R20XXx SOLIDWORKS (for SOLIDWORKS Connected)

            • Dassault Systèmes xCAD Connectors (for the SOLIDWORKS Connector)

          4. Select the application and click Uninstall/ChangeUser interface displaying the ongoing uninstallation of the SOLIDWORKS Connector within 3DEXPERIENCE SOLIDWORKS

          5. Confirm the uninstall when prompted

          A progress dialog will appear. Once it closes, the uninstall is complete.

          Performing a Clean Uninstall (Advanced)

          In rare cases typically when reinstalling or resolving persistent issues a clean uninstall may be required.

          Important: This process involves removing system components and editing the Windows registry. We strongly recommend working with your IT team or Solidxperts Technical Support before proceeding.

          Step 1: Remove Prerequisites

          After uninstalling SOLIDWORKS Connected or the SOLIDWORKS Connector, return to Control Panel → Uninstall a program and remove only the following items.

          ⚠️ Do not uninstall other Microsoft Visual C++ versions, as they may be required by other applications.

          • 3DEXPERIENCE Launcher

          • CEF for SOLIDWORKS Applications

          • Dassault Systèmes Software VC10 Prerequisites x86-x64

          • Dassault Systèmes Software VC11 Prerequisites x86-x64

          • Microsoft Visual C++ 2012 Redistributable (x86 & x64)

          • Microsoft Visual C++ 2013 Redistributable (x86 & x64)

          • Microsoft Visual C++ 2015–2019 Redistributable (x86 & x64)

          • Microsoft Visual Studio Tools for Applications 2019

          • WPTx64

          • Visual Basic (VBA) 7.1

          Step 2: Delete Remaining Folders

          Some folders may be hidden. In File Explorer, enable View → Show → Hidden items.

          Delete the following folders if they exist:

          C:\Program Files\Dassault Systemes\SOLIDWORKS 3DEXPERIENCE
          C:\Program Files\Dassault Systemes\B4XXxcadconnectors
          C:\Program Files\Common Files\SOLIDWORKS Shared
          C:\Program Files (x86)\Common Files\SOLIDWORKS Shared
          C:\Users\Public\Documents\SOLIDWORKS
          C:\Users\Public\Documents\Dassault Systemes
          C:\ProgramData\DassaultSystemes\3DEXPERIENCELauncher
          C:\ProgramData\SOLIDWORKS
          C:\Users\<UserName>\AppData\Roaming\DassaultSystemes
          C:\Users\<UserName>\AppData\Roaming\SOLIDWORKS
          C:\Users\<UserName>\AppData\Local\TempSWBackupDirectory
          C:\Users\<UserName>\AppData\Local\DassaultSystemes
          C:\Users\<UserName>\AppData\Local\SolidWorks

          Step 3: Clean the Registry (Advanced)

          ⚠️ Caution: Incorrect registry changes can cause serious system issues. Always consult an IT professional before proceeding.

          Remove the following registry keys if present:

          HKEY_CURRENT_USER\Software\Dassault Systemes\SolidWorks Shared
          HKEY_CURRENT_USER\Software\Dassault Systemes\SolidWorksPDM
          HKEY_CURRENT_USER\Software\SolidWorks
          HKEY_LOCAL_MACHINE\SOFTWARE\Dassault Systemes\SolidWorksPDM
          HKEY_LOCAL_MACHINE\SOFTWARE\Dassault Systemes\SwxConnectors
          HKEY_LOCAL_MACHINE\SOFTWARE\Dassault Systemes\V6_Common
          HKEY_LOCAL_MACHINE\SOFTWARE\SolidWorks
          HKEY_LOCAL_MACHINE\SOFTWARE\Srac
          HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\SolidWorks

          Step 4 and Final Step: Restart

          Once all steps are complete, restart the computer to finalize the cleanup.

          Final Thoughts

          In most cases, uninstalling directly from the 3DEXPERIENCE platform or Windows Control Panel is all that’s required. A clean uninstall should only be used when troubleshooting or preparing for a fresh installation.

          If you have questions or run into issues, your Solidxperts Technical Support team is here to help just reach out.

          Looking to go further?

          • Check out more tips and tutorials on our YouTube channel.

          • Explore best practices with our experts.

          • Or reach out to our team, we’re here to help you get the most out of your platform.

          Your platform should work the way your team works and we’re here to help make that happen.


          Michael Habrich

          3DEXPERIENCE Specialist

          X_green_halo

          Any questions? Need help? Ask one of our experts.

          Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

            Top Graphics Cards for SOLIDWORKS

            BLOG

            Top Graphics Cards for SOLIDWORKS

            [techtips_featured_image_shortcode]

            You’ve spent hours perfecting a complex car engine assembly, but the moment you try to rotate the view, the screen stutters and freezes. This dreaded assembly lag isn’t a reflection of your design skills. It’s a cry for help from your hardware.

            While the main computer chip handles the underlying logic of your design, your Graphics Processing Unit (GPU) acts as the computer’s “Visual Engine.” According to workstation builders, the GPU takes on the massive math required to physically display your work on screen. Equipping a proper CAD graphics card ensures that visual math happens instantly.

            Pushing this visual heavy-lifting over to a dedicated card is known as hardware acceleration. Without it, your machine struggles to hold all the geometry in its short-term memory, resulting in choppy movements that make 3D modeling feel like drawing on a moving target.

            Most users assume any expensive gaming component will fix this problem, but industry data reveals a completely different story. Securing the best graphics card for SOLIDWORKS actually requires specialized, certified software drivers that create a stable handshake with the program, delivering the fluid performance you desperately need.

            Gaming Cards vs. Workstation GPUs: Why Price Does Not Equal Performance

            At first glance, dropping a fortune on a top-tier gaming PC might seem like the smartest move for running SOLIDWORKS. However, an expensive gaming graphics card often causes more crashes and visual glitches than a standard $500 professional workstation card. The reason behind this is because a gaming card focuses on refresh speed, instead of calculating large amount of complex graphic data. Meaning that being able to go at 200km/h will not be useful when you need to lift 2000KG of data, without dropping it.

            The reason is simple: the secret behind this difference is a Certified Driver. Think of a driver as a specialized handshake between SOLIDWORKS and your hardware. Professional manufacturers work directly with SOLIDWORKS to certify compatibility, ensuring both systems speak the exact same language without stuttering. This deep software testing explains why using specialized workstation drivers for SOLIDWORKS stability makes much more sense than relying on consumer gear tuned for fast video games.

            Comparing gaming versus professional graphics cards for 3D design reveals that consumer hardware completely lacks the specific tools SOLIDWORKS needs to display complex parts accurately. As a result, sticking to a professional GPU gives you exclusive access to crucial workflow protections:

            • Certified Drivers: Guaranteed software harmony to prevent sudden crashes during a complex design session.

            • RealView Graphics: A built-in feature that instantly renders realistic lighting and material textures on your model while you work.

            • OIT (Order Independent Transparency): The processing power required to smoothly look through overlapping clear parts, like a glass windshield over a dashboard, without the screen glitching or tearing.

            Investing in a certified family of cards, such as NVIDIA RTX or AMD Radeon Pro for CAD, guarantees you aren’t fighting your hardware. Once you have a stable professional card picked out, you simply need to ensure it has enough room to hold your models. That brings us to VRAM: the “workbench” of your 3D designs.

            VRAM: The ‘Workbench’ of Your 3D Designs

            Think of Video RAM (VRAM) as your physical workbench. A small desk works perfectly for designing a simple bicycle gear, but assembling an entire drone requires much more table space before parts start falling off the edges. Rotating a basic 3D model uses VRAM to hold that structural geometry in front of you. However, adding realistic lighting or reflections drastically changes the impact of VRAM on CAD rendering speed, because generating high-resolution textures requires a noticeably larger workspace than standard wireframe modeling.

            Unfortunately, running out of this workspace creates a frustrating bottleneck. If your design exceeds your VRAM capacity, the computer is forced to constantly swap parts in and out of slower, long-term storage. You will notice this struggle immediately when applying surface finishes, resulting in stuttering screens or flickering textures that fail to load. Even the best workstation laptop graphics cards will suffer these exact visual glitches if they lack the necessary memory capacity for your specific workload.

            Sizing your memory properly comes down to evaluating your typical project scale. Most everyday designers will work very smoothly with 4GB to 8GB of VRAM. Conversely, the graphics card memory requirements for complex simulations or massive assemblies safely push you toward 32GB or more. Selecting the right hardware family depends entirely on this baseline memory requirement. Note that more than 64GB of VRAM is rarely needed.

            Now that your “workbench” is sized correctly, you must choose who builds it. The professional market is dominated by NVIDIA and AMD, but your first stop shouldn’t be a spec sheet it should be the Dassault Systèmes SOLIDWORKS Certified hardware list. This list is a guarantee that the manufacturer and SOLIDWORKS have tested the card specifically to prevent unexpected crashes. Buying a certified card is the safest way to ensure your hardware investment actually works when you open a complex file.

            When comparing these two giants, you will quickly encounter the term CUDA cores. Think of these as individual workers inside the NVIDIA graphics chip; the more workers you have, the faster they can calculate and render a realistic image of your product. While AMD’s Radeon Pro cards offer excellent value and their own efficient computing units, NVIDIA’s RTX series currently holds the edge in the broader CAD industry because of how efficiently these CUDA workers handle heavy 3D math.

            Finding the price-to-performance sweet spot means matching your daily tasks to the right hardware tier without overspending. To simplify the decision, here is a breakdown to help you find the best graphics card for SOLIDWORKS based on your typical projects:

            • Best budget GPU for SOLIDWORKS students: NVIDIA RTX A1000 (Perfect for learning and small assemblies).

            • Small Office Sweet Spot: AMD Radeon Pro W6600 or NVIDIA RTX A2000 (Ideal for smooth, medium-sized daily engineering).

            • Industrial Designer Peak: NVIDIA RTX 5000 Ada (Necessary when handling massive, complete machines).

            Even if you are tempted to look at extreme top-tier data like NVIDIA RTX 6000 Ada versus RTX A6000 benchmarks, remember that most everyday users will never need that massive level of power. A mid-range certified card will keep your design process perfectly stable and fluid.

            From Lag to Liquid: Optimizing Settings for Your New Hardware

            Your brand-new professional card won’t work its magic automatically straight out of the box. To actually see the realistic lighting and reflections you just paid for, you need to know how to enable RealView Graphics in SOLIDWORKS. Look at the top of your workspace screen for the “Heads-up View Toolbar” and click the small sphere icon. Toggling this feature transforms your flat, dull part into a realistic material like shiny steel or textured plastic, proving your hardware investment was worth it.

            Beyond the visual upgrades, you must force Windows to use your hardware efficiently by optimizing SOLIDWORKS performance settings. Search your computer for “Graphics Settings” and look for a toggle called “Hardware-accelerated GPU scheduling.” Think of this setting as hiring a dedicated traffic cop for your system’s visual data. Turning it on tells your computer to hand off the heavy 3D math directly to your new graphics card, keeping your complex assemblies rotating smoothly without bogging down your processor.

            Occasionally, even the best systems might display strange jagged lines or missing model faces. When troubleshooting SOLIDWORKS graphical glitches and artifacts, your first step is usually just updating your certified driver rather than calling expensive IT support. These “artifacts” are simply short-term communication hiccups between the design software and your hardware. Keeping your drivers properly updated ensures these hiccups are resolved quickly, keeping your workflow completely seamless.

            Your SOLIDWORKS Hardware Roadmap: Making the Final Decision

            At this point, you no longer have to guess why your screen stutters while rotating parts. By understanding how your computer’s visual engine handles heavy lifting, you’ve moved from the frustration of assembly lag to the promise of fluid design. You now know that investing in proper SOLIDWORKS hardware isn’t about chasing expensive gaming specs it’s about selecting the right professional tool.

            While tech forums can easily drag you into the trap of “it depends,” an entry-level professional card typically offers the perfect balance. These professional workstation GPUs for large assembly modeling ensure that crucial specialized handshake happens between your software and hardware. This agreement guarantees the certified drivers necessary to secure a stable, crash-free design environment.

            Before making a final purchase, run your chosen card through this simple three-step verification checklist:

            • Verify the Handshake: Is the exact card model listed on the official SOLIDWORKS hardware certification page?

            • Check the Workbench: Does it have at least 8GB of VRAM to comfortably hold your models and future-proof your setup?

            • Match the Workflow: If you plan to render photorealistic images, is this a recommended GPU for SOLIDWORKS Visualize?

            Imagine opening a massive, complex assembly and effortlessly spinning it on your screen with realistic textures applied, completely confident in your hardware investment. That level of smooth, crash-free creativity is now entirely within your reach. Start by checking your current computer’s VRAM today, and use that baseline to take your first confident step toward a better workstation.

            Want to Learn More?

            Discover more tips and tutorials on our YouTube channel.

            Explore best practices with our experts.

            Or contact our team, we’re here to help you get the most out of your platform.


            Dominic Martel

            Solutions Specialist

            X_green_halo

            Any questions? Need help? Ask one of our experts.

            Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

              Which Raise3D Solution Is Right for Your Industrial 3D Printing Needs?

              BLOG

              Which Raise3D Solution Is Right for Your Industrial 3D Printing Needs?

              [techtips_featured_image_shortcode]

              Over the past few years, 3D printing has evolved far beyond rapid prototyping. Today, it is widely used across industrial environments for tooling, functional parts, product development, supply chain optimization, and even end-use production.

              However, as the technology has matured, however, one reality has become increasingly clear: there is no single 3D printing solution that fits every application.

              From FDM and resin printing to polymer powder technologies, each platform offers different advantages in terms of precision, mechanical performance, production volume, and operating costs.

              As a result, Raise3D has established itself as a compelling option for organizations seeking a balance between performance, accessibility, and versatility.

              At Solidxperts, we help organizations evaluate, implement, and optimize these solutions as part of a broader additive manufacturing strategy. Raise3D is not a universal answer to every challenge; however, it often fits a wide range of industrial applications very well.

              Raise3D Pro3 and Pro3 Plus: A Versatile Starting Point

              For many organizations, adopting 3D printing begins with a straightforward objective: producing functional parts in-house without relying on external suppliers.

              This is exactly where the Pro3 series excels.

              The Raise3D Pro3 and Pro3 Plus are industrial FDM printers designed to support a broad range of applications, from functional prototyping to manufacturing jigs, fixtures, and production tooling. Their robust construction and dual-extrusion architecture provide the flexibility needed to tackle diverse projects with a single platform.

              Raise3D Pro3 & Pro3 Plus

              Build Volume

              • Pro3: 300 × 300 × 300 mm

              • Pro3 Plus: 300 × 300 × 605 mm

              The extended build height of the Pro3 Plus is particularly valuable when producing large components or maximizing the number of parts manufactured in a single print job.

              Compatible Materials

              FDM technology supports a wide variety of thermoplastics, including:

              • PLA

              • PETG

              • ABS

              • ASA

              • TPU

              • Nylon

              • Fiber-reinforced composites

              Raise3D also offers a portfolio of validated materials with optimized print profiles. This helps users achieve reliable and repeatable results with minimal setup.

              Third-party materials can also be used when specific application requirements demand it. This flexibility is a major advantage, although official Raise3D materials typically provide the most predictable and repeatable performance in production environments.

              Industries Served

              Manufacturing, automotive, aerospace, industrial design, and R&D teams all use the Pro3 series. Because of its versatility, organizations often rely on it when they want to support multiple applications without investing in several specialized machines.

              Pro3 Series Industries

              Why Is the Pro3 Series So Popular?

              One of the greatest strengths of the Pro3 platform is its ability to grow alongside an organization’s needs. The same machine can be used to validate a prototype, manufacture an assembly fixture, or produce a replacement maintenance component. This versatility, combined with broad material compatibility and dependable performance, has made the Pro3 one of the most widely adopted industrial FDM platforms available today.

              Raise3D E3: Productivity, Compactness, and Flexibility

              Not every organization needs larger parts. In many cases, the primary goal is to improve efficiency or make 3D printing accessible to a broader range of users.

              The Raise3D E3 was designed with this objective in mind.

              Built around an Independent Dual Extruder (IDEX) architecture, the E3 features two print heads that operate independently. This enables duplication and mirror-printing modes that can significantly increase productivity for certain applications.

              Raise3D E3

              Build Volume

              330 × 240 × 240 mm

              Compatible Materials

              The E3 supports the major FDM material families:

              • PLA

              • PETG

              • ABS

              • ASA

              • TPU

              • Nylon

              • Engineering composites

              Like other Raise3D platforms, official Raise3D materials benefit from optimized print profiles while still allowing users the freedom to work with third-party materials when required.

              Industries and Environments

              The E3 is particularly well suited for engineering departments, research centers, product development teams, and educational institutions. Its compact footprint and ease of integration make it an excellent choice for laboratories, classrooms, technical training centers, and office environments.

              For organizations looking to expand access to 3D printing without deploying a dedicated production area, the E3 often represents an attractive and practical solution.

              Raise3D E3 Industries

              A Different Approach to Productivity

              Rather than focusing on larger build volumes, the E3 improves efficiency by maximizing machine utilization. Its IDEX architecture enables simultaneous production of multiple parts or duplicate prototypes, naturally accelerating development cycles and reducing turnaround times for engineering teams.

              Raise3D DF2: When Precision Matters Most

              Some applications demand a level of accuracy and surface quality that traditional FDM technologies cannot always achieve.

              This is where the Raise3D DF2 stands out.

              Powered by DLP technology, the DF2 delivers highly detailed parts with exceptional surface finish and excellent repeatability, making it ideal for applications where precision is critical.

              Raise3D DF2

              Build Volume

              120 × 68 × 300 mm

              Compatible Materials

              The DF2 supports a range of photopolymer resins, including:

              • Rigid resins

              • Engineering resins

              • Flexible resins

              • Application-specific specialty resins

              The DF2 ecosystem is built around validated materials and qualified process parameters, helping users achieve consistent results from one print to the next.

              Industries Served

              The DF2 is commonly used in medical, dental, industrial design, and research and development environments. It also supports specialized manufacturing applications where dimensional accuracy and surface quality are critical requirements.

              One documented example is 3DPMolds, which uses the DF2 to accelerate the production of molds for low-volume plastic injection molding, demonstrating how resin technologies continue to expand into practical industrial applications.

              A Platform Built for Accuracy

              The DF2 is designed for organizations where surface finish, fine details, and dimensional precision play a central role in the manufacturing process. When these factors become critical, DLP technology offers advantages that are difficult to match with conventional FDM systems.

              DF2 Scene

              Raise3D RMS 220: Moving Toward Production

              In some cases, additive manufacturing is no longer used simply to develop products, but to manufacture them directly.

              The Raise3D RMS 220 was created for exactly this purpose.

              Based on Selective Laser Sintering (SLS) technology, the RMS 220 produces parts from polymer powder without the need for support structures. This enables greater design freedom and allows users to efficiently fill the build chamber with multiple parts in a single production cycle.

              Raise3D RMS 220

              Build Volume

              220 × 220 × 350 mm

              Compatible Materials

              The RMS 220 is designed for industrial polymer powders such as:

              • PA11

              • PA12

              Officially supported materials benefit from validated process parameters that help ensure repeatability and production stability.

              Raise3D RMS 220 Compatible Materials

              Industries Served

              The RMS 220 is intended for manufacturers, automotive companies, aerospace organizations, and businesses looking to adopt additive manufacturing as a production technology.

              Documented use cases include companies such as Kinboshi and LutraCAD, both of which have integrated the RMS 220 into industrial workflows involving the production of end-use and customized parts.

              A Step Toward Manufacturing

              SLS technology represents an important milestone in the adoption of additive manufacturing. The absence of support structures, combined with strong mechanical properties and exceptional design freedom, makes it particularly well suited for low- to medium-volume production.

              Why Choose Solidxperts?

              Selecting an industrial 3D printer involves much more than comparing technical specifications.

              The real challenge is identifying the technology that will deliver the greatest value for your specific applications and business objectives.

              At Solidxperts, we help organizations navigate this decision-making process. Our role extends beyond supplying equipment. We support our customers through needs analysis, technology selection, installation, training, and ongoing technical support.

              This approach enables businesses to adopt additive manufacturing in a structured, scalable, and results driven manner.

              What’s the Next Step?

              With the Pro3 and Pro3 Plus, E3, DF2, and RMS 220, Raise3D offers a diverse portfolio of additive manufacturing solutions that address a wide range of industrial requirements.

              Some organizations need a versatile platform to accelerate product development. Others require higher precision, greater design freedom, or increased production capabilities. Each technology serves a different purpose, and the application itself should always guide the decision.

              One of Raise3D’s greatest strengths lies in its balance of performance, flexibility, and accessibility. These platforms enable organizations to integrate 3D printing into their operations without the complexity or investment often associated with more specialized technologies.

              At Solidxperts, we believe a successful additive manufacturing project starts long before a machine is installed. It begins with a clear understanding of production goals, materials, operational constraints, and long-term business objectives.

              Whether your goal is to accelerate prototyping, optimize production processes, or explore new manufacturing possibilities, our team is ready to help identify the technology best suited to your reality.

              Because in industrial 3D printing, the best solution is not necessarily the most advanced one. It is the one that best meets your needs.

              Looking to go further?


              Lilian Beatrix

              Additive Manufacturing Specialist

              X_green_halo

              Any questions? Need help? Ask one of our experts.

              Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

                SOLIDWORKS Design vs Onshape: Which CAD Platform Is Right for Your Team?

                BLOG

                SOLIDWORKS Design vs Onshape: Which CAD Platform Is Right for Your Team?

                [techtips_featured_image_shortcode]

                Choosing a CAD platform is a bigger decision than just comparing modeling tools.

                Today, engineering teams need to think about collaboration, data management, cloud connectivity, licensing flexibility, training requirements, and even AI-powered productivity tools. Whether you’re replacing an older CAD system, evaluating cloud CAD for the first time, or planning for future growth, the platform you choose will impact your workflow for years.

                Two of the most common options being evaluated today are SOLIDWORKS Design and Onshape.

                Both are professional CAD solutions that support parametric modeling and offer cloud connected workflows. But they are built around very different philosophies.

                Let’s break down the differences.

                Quick Answer: SOLIDWORKS Design or Onshape?

                If your team wants a mature, industry-standard CAD platform with powerful desktop performance, extensive engineering tools, flexible licensing options, and access to the broader 3DEXPERIENCE ecosystem, SOLIDWORKS Design is typically the stronger choice.

                If your priority is a browser only CAD environment with simplified deployment and built-in cloud collaboration, Onshape may be worth considering.

                The right answer depends on your team’s workflows, product complexity, and long-term goals.

                What Is SOLIDWORKS Design?

                SOLIDWORKS Design is the latest evolution of the SOLIDWORKS portfolio.

                It combines the CAD environment engineers have trusted for decades with modern cloud services, collaboration tools, revision management, and AI-powered capabilities through the 3DEXPERIENCE platform.

                Today, organizations can choose between multiple deployment approaches:

                SOLIDWORKS Design Single-User License

                A named-user license connected directly to cloud services and the 3DEXPERIENCE platform.

                Benefits include:

                • Access from multiple devices

                • Built-in cloud collaboration

                • Cloud file and revision management

                • Continuous updates

                • AI-enabled cloud services and tools

                SOLIDWORKS Design Device License

                A machine-based license designed for organizations that prefer traditional deployment methods.

                Benefits include:

                • Local installation control

                • Machine-based activation

                • Multi-user workstation environments

                • Optional cloud connectivity

                • Support for controlled IT deployment strategies

                Both licensing options provide access to Cloud Services and future expansion into the broader 3DEXPERIENCE ecosystem.

                Comparison of SOLIDWORKS Design and Onshape interfaces to help teams choose the right CAD platform.SOLIDWORKS CAD Modeling Environment

                What Is Onshape?

                Onshape is a fully browser based CAD platform.

                Unlike traditional desktop CAD, there is no local installation. Users access their CAD environment through a web browser, and all data is stored in the cloud.

                Because the platform is cloud-native, Onshape provides:

                • Real time collaboration

                • Built-in version history

                • Browser based access

                • Automatic updates

                • Simplified IT deployment

                This makes it attractive for distributed teams, startups, educational institutions, and organizations looking to avoid workstation management.

                Side-by-side comparison of SOLIDWORKS and Onshape highlighting key features for engineering teams.

                Onshape CAD Modeling Environment

                SOLIDWORKS Design vs Onshape: The Biggest Differences

                Modeling Experience

                Both platforms use modern parametric modeling workflows.

                However, SOLIDWORKS Design still offers a more mature and feature rich modeling environment for many engineering use cases.

                Areas where SOLIDWORKS continues to excel include:

                • Large assemblies

                • Weldments

                • Routing

                • Drawings and detailing

                • Manufacturing documentation

                • Simulation integration

                • CAM integration

                • Advanced surfacing workflows

                For many engineers, SOLIDWORKS remains the benchmark for production ready mechanical design.

                Onshape delivers a modern modeling experience and continues to evolve rapidly, but some organizations transitioning from mature desktop CAD environments may find certain advanced workflows less developed.

                Performance

                This is where deployment philosophy matters.

                SOLIDWORKS Design

                Most CAD calculations happen locally on workstation hardware.

                Advantages:

                • Excellent performance on complex assemblies

                • Direct access to GPU resources

                • Better support for demanding engineering workloads

                • Less dependence on internet speed during modeling

                Onshape

                All modeling calculations occur on cloud infrastructure.

                Advantages:

                • Lower workstation requirements

                • Easy access from almost any device

                • Consistent performance across users

                For engineering teams working on large products, machinery, manufacturing equipment, or highly detailed assemblies, local workstation performance still offers significant advantages.

                Data Management

                Historically, data management was a major differentiator.

                Today, the gap is much smaller.

                Onshape

                Includes cloud-based data management by default.

                Users benefit from:

                • Version history

                • Branching workflows

                • Built-in collaboration

                • Cloud storage

                SOLIDWORKS Design

                Includes Cloud Services and can scale directly into the 3DEXPERIENCE platform.

                Organizations can start with:

                • Share and Markup

                • Store and Revise

                • Collaborative Spaces

                • Cloud revision management

                And later expand into:

                • Product lifecycle management (PLM)

                • Change actions

                • Governance workflows

                • Enterprise collaboration

                This creates a growth path from basic collaboration all the way to enterprise level product development.

                What About SOLIDWORKS xDesign?

                This is an important distinction that often gets overlooked.

                When comparing browser-based CAD, the most direct comparison is often SOLIDWORKS xDesign versus Onshape, not SOLIDWORKS Design versus Onshape.

                SOLIDWORKS xDesign is Dassault Systèmes’ cloud-native design solution, running entirely in a web browser with no local installation required. It combines modeling, collaboration, lifecycle management, and cloud storage directly within the 3DEXPERIENCE platform.

                Overview of SOLIDWORKS Design and Onshape showing differences in workflow and collaboration features.

                SOLIDWORKS xDesign Modeling Environment

                For organizations that like the flexibility of browser-based CAD but want to stay within the SOLIDWORKS ecosystem, xDesign is often worth evaluating alongside Onshape.

                Many companies ultimately adopt a hybrid strategy:

                • SOLIDWORKS Design for advanced mechanical design

                • SOLIDWORKS xDesign for cloud-native collaboration and conceptual work

                • 3DEXPERIENCE for data management and lifecycle control

                AI Features: SOLIDWORKS vs Onshape

                AI is becoming part of every CAD discussion, but it’s important to separate practical tools from marketing buzzwords.

                Neither platform has a “design my product” button.

                Instead, both focus on productivity improvements.

                AI in Onshape

                Onshape currently offers AI Advisor, an AI-powered assistant designed to answer questions and guide users through workflows using Onshape documentation and training resources as its knowledge base.

                AI Advisor can:

                • Answer workflow questions

                • Recommend best practices

                • Surface documentation

                • Provide troubleshooting guidance

                • Deliver contextual assistance inside the platform

                Importantly, Onshape states that AI Advisor does not currently generate designs or make engineering decisions.

                Visual comparison of SOLIDWORKS Design and Onshape focused on team collaboration and cloud capabilities.

                Onshape AI Advisor

                AI in SOLIDWORKS

                SOLIDWORKS has been expanding its AI roadmap aggressively through both desktop and cloud-connected tools.

                Recent AI capabilities include:

                • Auto-Generate Drawings

                • Command Predictor

                • Fastener Recognition

                • Assembly Performance Evaluator

                • Material Appearance Manager

                • BREP-to-Parametric CAD conversion

                • Design Change Impact analysis

                • PLM Model Insights

                • AURA AI Assistant

                Rather than acting as a documentation assistant, many of these tools directly interact with engineering workflows and CAD data.

                The goal isn’t replacing engineers. It’s reducing repetitive work, accelerating documentation, improving performance, and helping teams make decisions faster.

                Illustration comparing SOLIDWORKS Design and Onshape to help determine the best CAD solution for design teams.

                SOLIDWORKS AI Lab

                Which Platform Is Better for Growing Companies?

                This is often the most important question.

                For startups prioritizing fast deployment and simple browser access, Onshape can be an attractive option.

                For companies expecting growth, increasing product complexity, manufacturing integration, simulation requirements, or future PLM adoption, SOLIDWORKS Design often provides a more scalable path.

                One of the biggest advantages of the SOLIDWORKS ecosystem is that organizations don’t need to commit to everything on day one.

                You can start with:

                • SOLIDWORKS Design

                • Cloud Services

                • Basic collaboration

                Then gradually expand into:

                • PDM

                • PLM

                • Simulation

                • Manufacturing

                • Electrical

                • Cloud-native design

                • AI-driven workflows

                Without changing CAD platforms.

                Why work with Solidxperts?

                Choosing software is only part of the project.

                Implementation, training, data management strategy, and user adoption are often what determine whether a deployment succeeds.

                At Solidxperts, we work with organizations every day that are evaluating:

                • SOLIDWORKS Design

                • SOLIDWORKS xDesign

                • Cloud Services

                • 3DEXPERIENCE

                • PDM and PLM solutions

                • CAD migration projects

                Whether you’re moving from another CAD platform, modernizing your data management strategy, or exploring AI-enabled workflows, our team can help you build a roadmap that fits your reality not just a software brochure.

                The goal isn’t simply choosing a CAD tool.

                It’s building a design environment that will still make sense five years from now.

                Looking to go further?


                Michael Habrich

                3DEXPERIENCE Specialist

                X_green_halo

                Any questions? Need help? Ask one of our experts.

                Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

                  SWOOD 2026: Key New Features to Discover

                  BLOG

                  SWOOD 2026: Key New Features to Discover

                  [techtips_featured_image_shortcode]

                  SWOOD 2026: Design with more freedom, automate further, and produce faster

                  The wood and furniture manufacturing industry is evolving quickly. Manufacturers are under constant pressure to shorten lead times, increase product personalization, overcome the shortage of skilled labor, and improve profitability. In this context, digital tools play an increasingly strategic role.

                  With SWOOD 2026, EFICAD continues its vision of an integrated digital chain where design, manufacturing, and data management work together to accelerate processes while reducing manual interventions.

                  This new release brings significant improvements across the entire SWOOD suite: SWOOD Design, SWOOD CAM, SWOOD Nesting, and SWOOD Center. More than just an update, SWOOD 2026 directly addresses the current challenges faced by manufacturers in the woodworking, cabinetry, commercial furniture, and bespoke fit-out sectors.

                  Today’s challenges in wood manufacturing

                  Before diving into what’s new, it’s important to understand the issues companies face today:

                  • Growing demand for customized products

                  • Reduced delivery lead times

                  • Difficulty recruiting and training specialized resources

                  • Increasing complexity of architectural projects

                  • Need to integrate ERP, MES, and CNC equipment

                  • Ongoing pursuit of greater productivity

                  The new features in SWOOD 2026 were developed specifically to address these realities.

                  SWOOD Design 2026: more freedom for complex projects

                  Manufacturers of bespoke furniture know that atypical projects often pose the greatest design challenges. SWOOD Design 2026 introduces several improvements that make it easier to create customized products without increasing model complexity.

                  1. SWOOD Box supports non-rectangular geometries

                  Traditionally, standard furniture relies on simple, rectangular geometries. However, modern projects often require more complex shapes:

                  • Under-stair furniture

                  • Vehicle fit-outs

                  • Built-ins under sloped ceilings

                  • Custom architectural installations

                  Thanks to the new Point parameter in SWOOD Box, you can now position and intelligently constrain components according to non conventional geometries.

                  Benefits

                  • Fewer specialized configurations

                  • More flexible libraries

                  • Better reuse of existing models

                  • Faster development of parametric catalogs

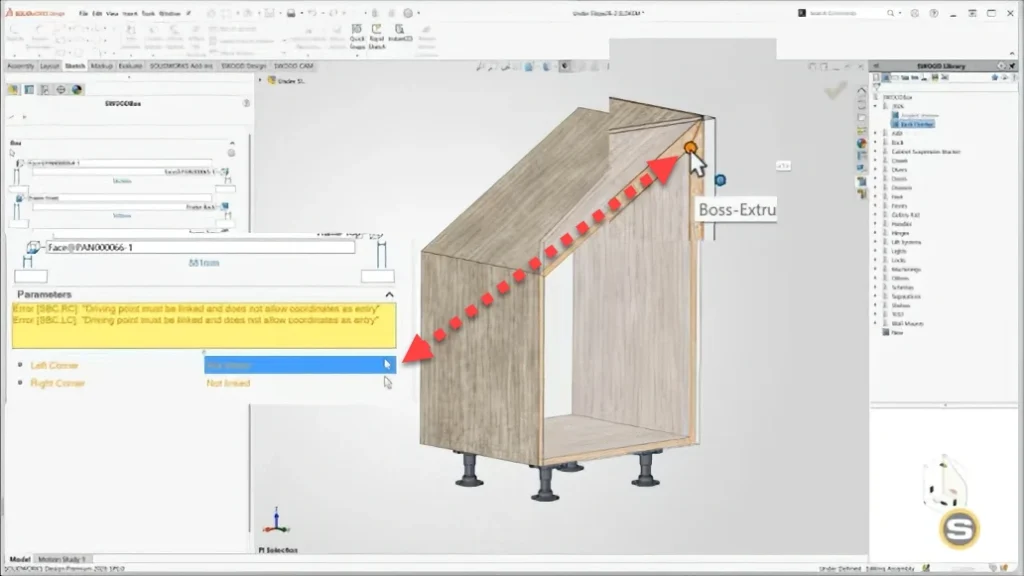

                  Overview of new features in SWOOD 2026 for woodworking design and manufacturing

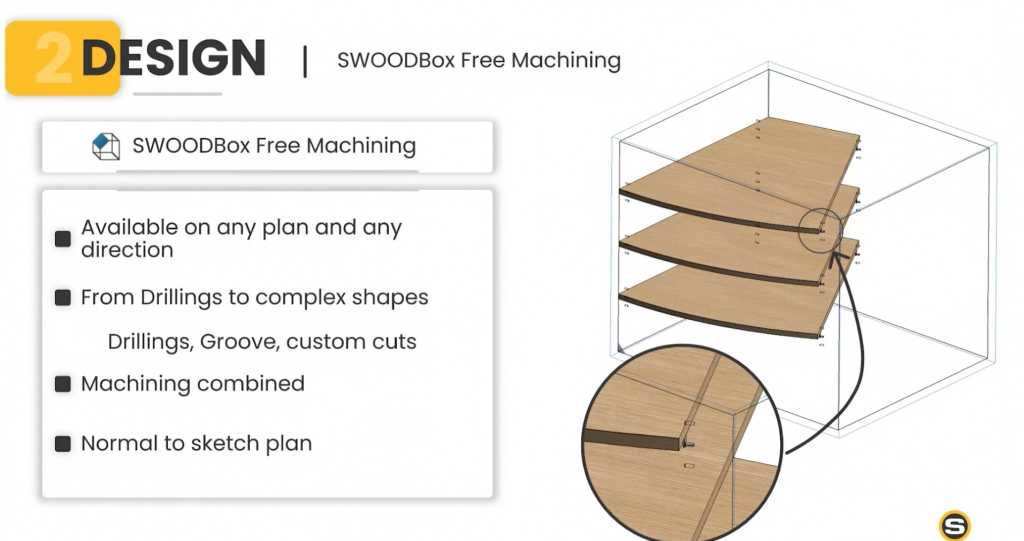

                  2. Free Machining in SWOOD Box

                  Manufacturing rarely follows rules perfectly aligned with a model’s standard CAD planes. With the new Free Machining feature, machining operations can now be defined according to the actual orientation of a sketch.

                  This improvement enables:

                  • Better consistency between design and manufacturing

                  • Simplified handling of angled panels

                  • Reduced manual adjustments in CAM

                  3. Multilingual libraries

                  For companies working with multiple plants, subsidiaries, or international partners, library management can quickly become complex. SWOOD 2026 now allows SWOOD Box parameters to be displayed in multiple languages.

                  Outcome

                  • Simpler rollout of corporate standards

                  • Improved collaboration across international teams

                  • Fewer misunderstandings

                  Key highlights of SWOOD 2026 updates for CAD and woodworking workflows

                  SWOOD CAM 2026: automation reaches a new level

                  For many manufacturers, the bottleneck is no longer design but the preparation of CNC programs. SWOOD CAM 2026 introduces features that significantly reduce manual interventions.

                  1. CAM Filters: one of the most important new features in SWOOD 2026

                  The new CAM Filters allow you to automatically assign machining strategies based on different criteria:

                  • Materials

                  • Geometry

                  • Machines

                  • SOLIDWORKS properties

                  • Manufacturing properties

                  • Post-processors

                  Why it matters

                  Rather than creating specific rules for every situation, manufacturers can develop reusable and scalable manufacturing logic.

                  The benefits are immediate:

                  • Reduced programming time

                  • Standardized machining methods

                  • Lower risk of errors

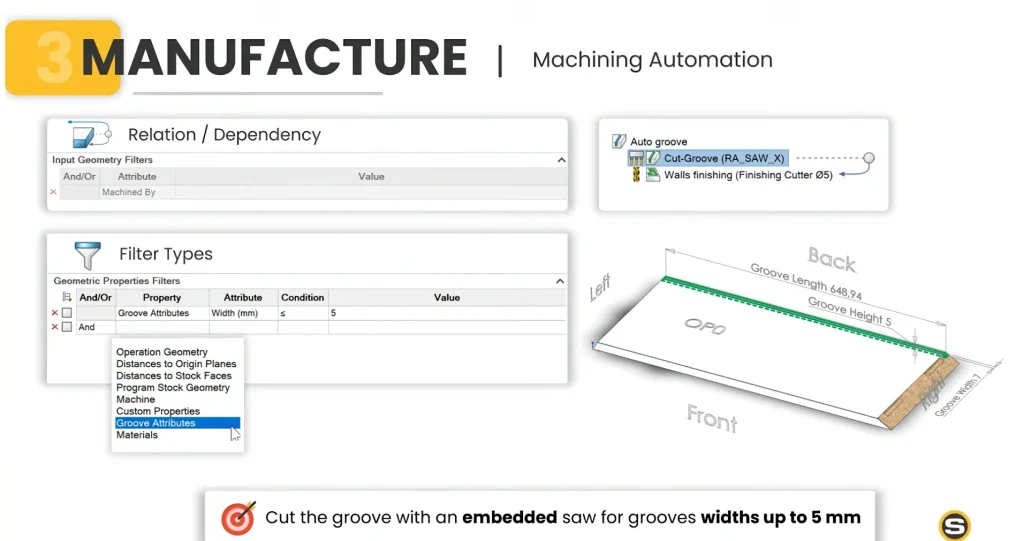

                  Updated user interface and improvements introduced in SWOOD 2026

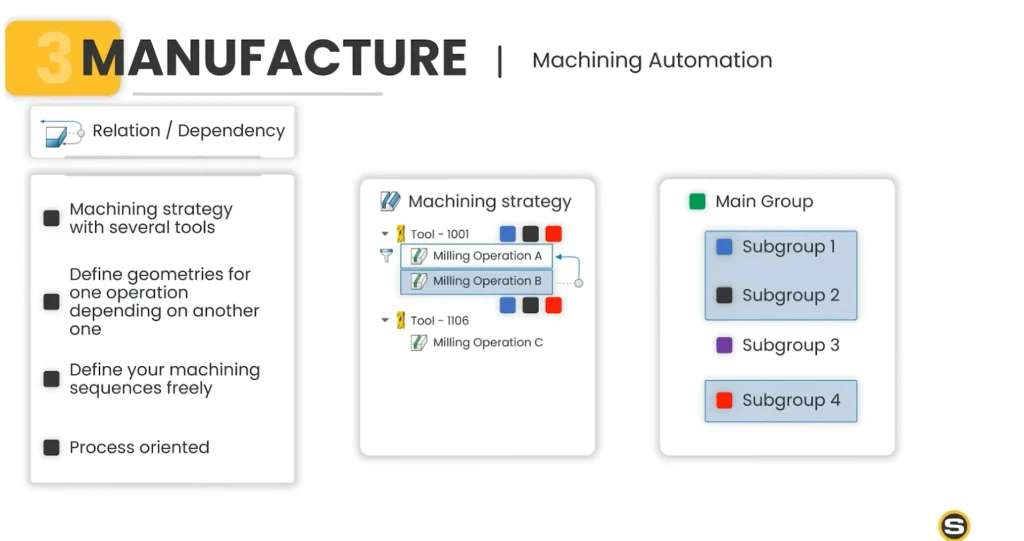

                  2. Relationships between CAM operations

                  Another major improvement concerns communication between machining operations. Operations can now automatically share already-identified geometries.

                  For example:

                  • A drilling operation can pass references to a secondary operation

                  • A groove can be automatically recognized by other strategies

                  • Specialized connectors can be processed more efficiently

                  Direct impact

                  • More robust automation

                  • Less duplication of rules

                  • Simplified maintenance of CAM libraries

                  New cabinet design tools and features available in SWOOD 2026

                  3. New 3D machining strategies

                  Manufacturers producing complex parts will also benefit from new toolpath strategies:

                  • 3D roughing

                  • Projected finishing

                  • Spiral

                  • Alternating spiral

                  • Circular zig-zag

                  • Cavity machining

                  Outcome

                  • Better surface finish quality

                  • Optimized machining times

                  • More efficient use of modern CNC machines

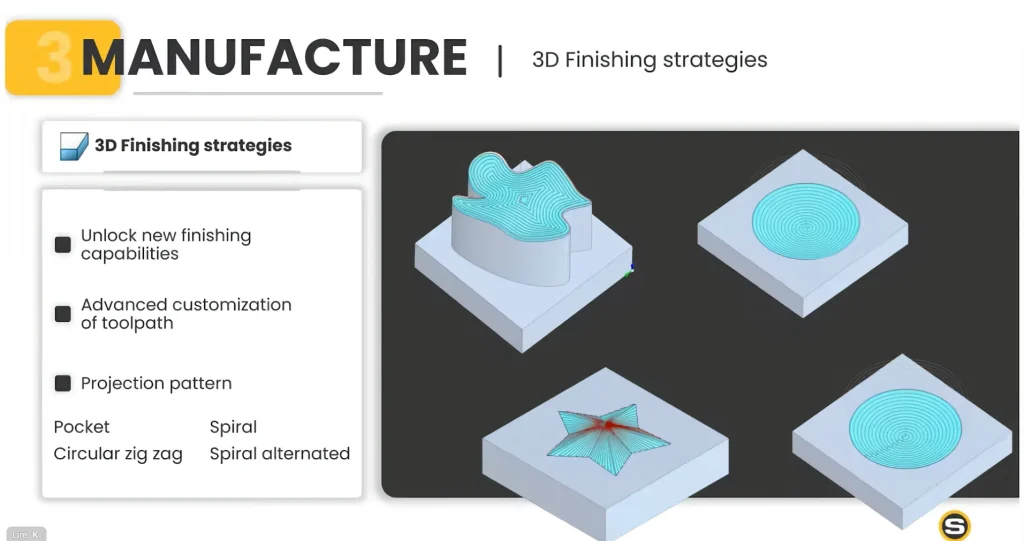

                  CNC machining improvements and automation features in SWOOD 2026

                  SWOOD Nesting 2026: more control over panel optimization

                  With material costs remaining high, panel optimization is essential. SWOOD Nesting 2026 delivers greater stability in the handling of nests.

                  1. Nesting Lock

                  Users can now lock an optimization result to prevent accidental modification.

                  Advantages

                  • Protection of validated decisions

                  • Greater control over the production process

                  • Lower risk of unintentional reorganization

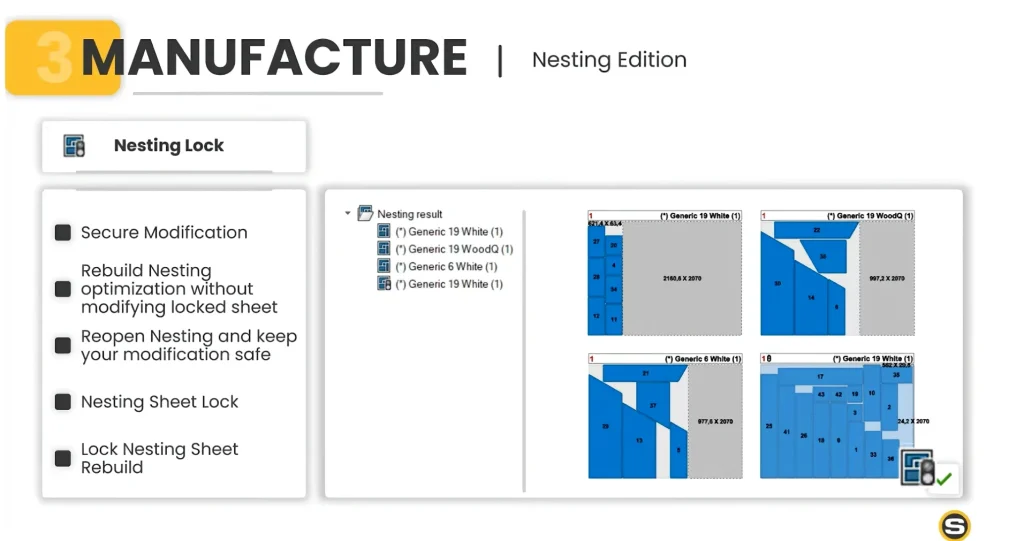

                  Enhanced woodworking workflow and productivity tools in SWOOD 2026

                  2. Nesting Freeze

                  This feature goes even further. CAM edits and adjustments made after optimization can be retained even when the project is updated.

                  Benefits

                  • Simplified revision management

                  • Protection of work already completed

                  • Fewer unnecessary reworks

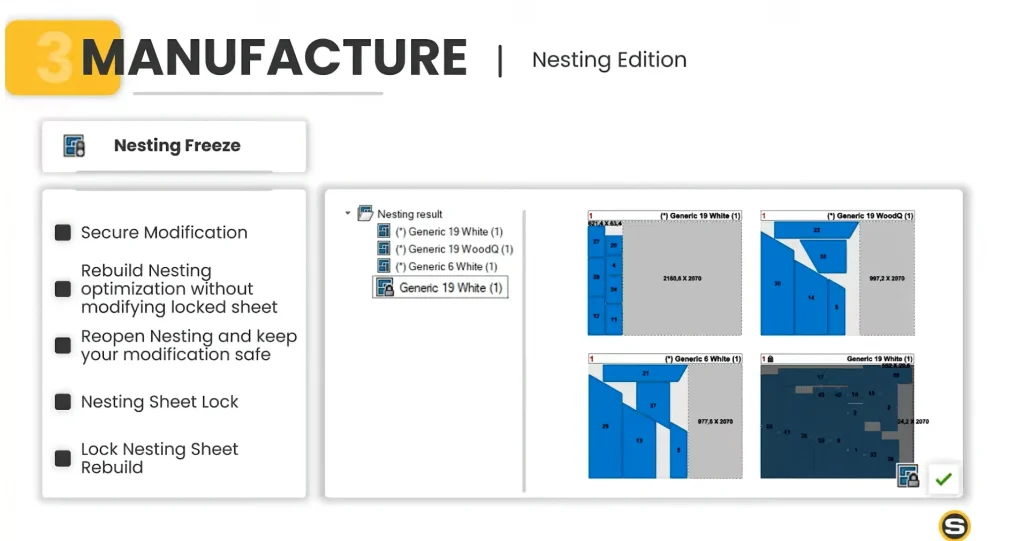

                  Automation features in SWOOD 2026 designed to improve design efficiency

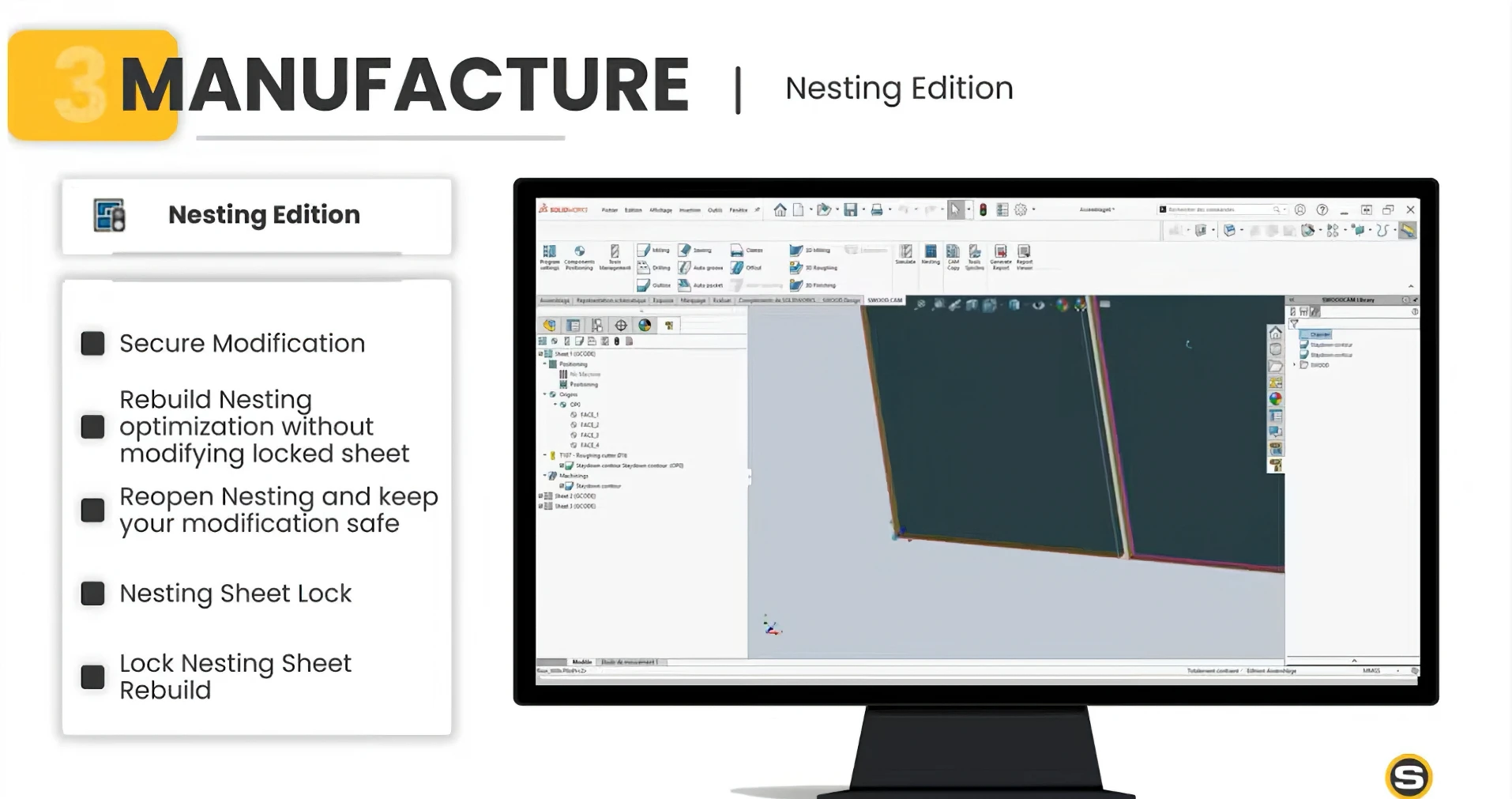

                  3. Smart nesting updates

                  Manufacturers rarely work on frozen projects. With SWOOD 2026, nesting assemblies can be reopened and updated while preserving previous adjustments.

                  This improvement is especially useful for:

                  • Evolving projects

                  • Commercial furniture

                  • Make-to-order environments

                  Updated material libraries and components included in SWOOD 2026

                  SWOOD Center 2026: connecting engineering to the shop floor

                  The value of a modern manufacturing solution also depends on its ability to communicate with other enterprise systems. SWOOD Center continues this mission with several important additions.

                  1. PTX export for panel saws

                  SWOOD now supports PTX formats 1.14 and 1.21. This improvement makes it easier to integrate with many production machines used in the industry.

                  Outcome

                  • Less manual data entry

                  • Lower risk of errors

                  • Smoother data flow between systems

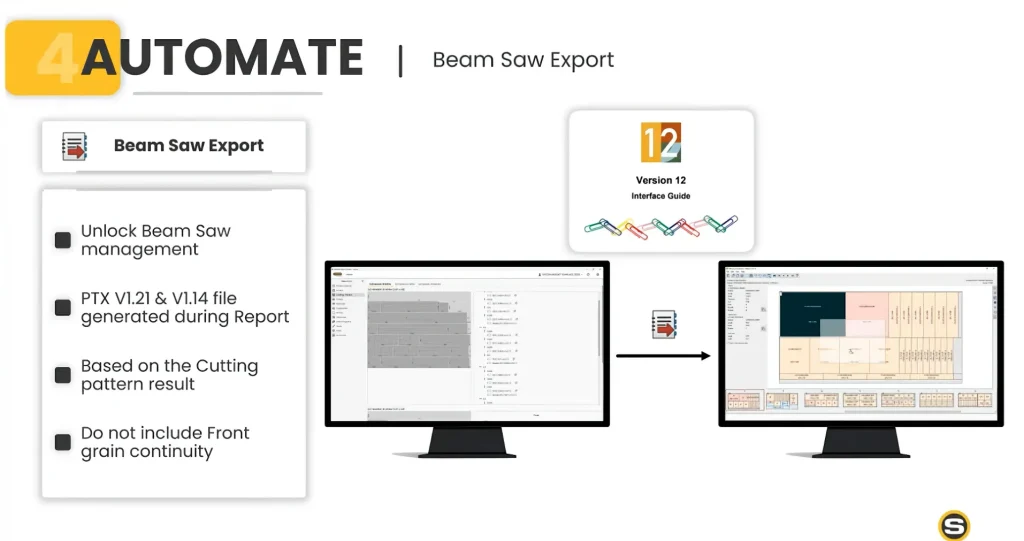

                  Performance upgrades and faster processing in SWOOD 2026 software

                  2. Batch document generation

                  Users can now automatically generate:

                  • Drawings

                  • Reports

                  • Panel lists

                  • Hardware lists

                  • Production documents

                  Impact

                  • Significant time savings

                  • Standardized documentation

                  • Higher team productivity

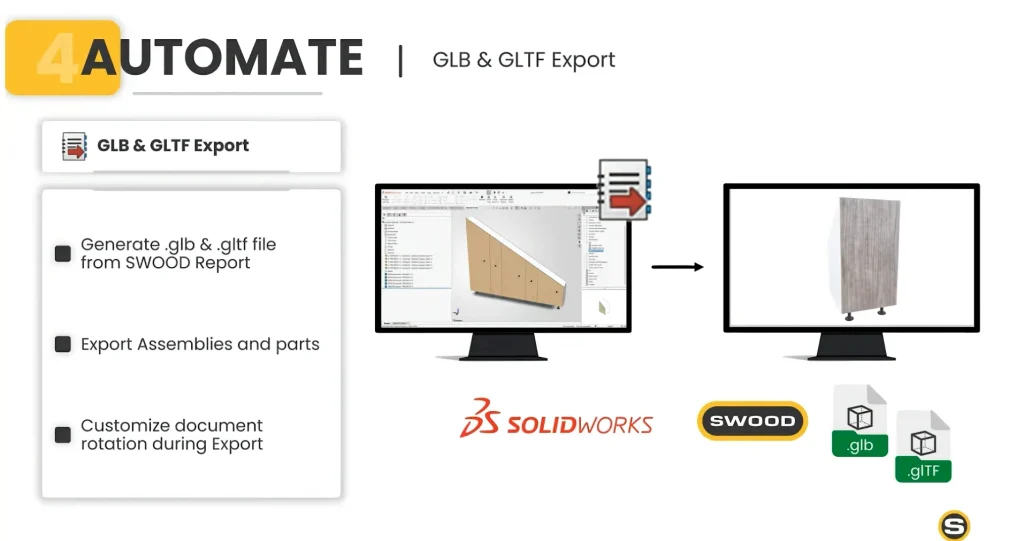

                  Enhanced 3D wood modeling capabilities introduced in SWOOD 2026

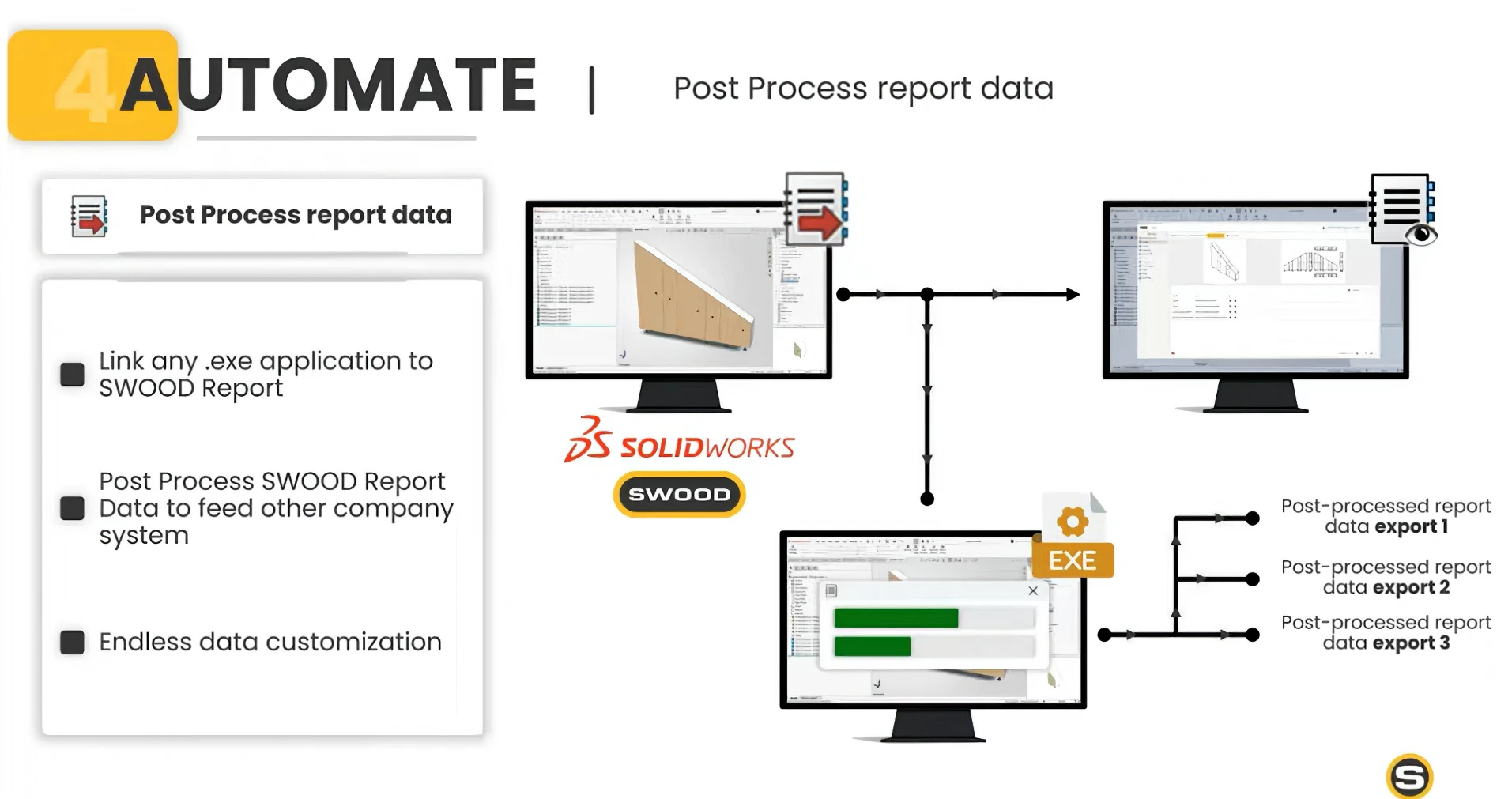

                  3. Enterprise integration automation

                  SWOOD Center can now automatically launch external applications from generated reports. This capability opens the door to advanced integrations with:

                  • ERP

                  • MES

                  • Planning tools

                  • Custom internal systems

                  New assembly tools for woodworking projects in SWOOD 2026

                  The vision behind SWOOD 2026

                  Looking across all the new features, a clear trend emerges. SWOOD is no longer just aiming to speed up design or CNC programming. The platform now strives to create complete digital continuity between engineering and production.

                  This strategy rests on four pillars:

                  1. Design without constraints

                  The new SWOOD Box capabilities let you tackle increasingly complex projects without multiplying models and configurations.

                  2. Automate further

                  CAM Filters and inter-operation relationships reduce reliance on individual know-how and foster standardization.

                  3. Optimize materials

                  The new SWOOD Nesting functions protect completed work while simplifying revision management.

                  4. Connect systems

                  New features in SWOOD Center strengthen integration between engineering software, ERPs, and production equipment.

                  Why consider upgrading to SWOOD 2026?

                  For companies already using SWOOD, this release is a major opportunity to increase their level of automation. For manufacturers currently evaluating their digital processes, SWOOD 2026 clearly demonstrates that it is possible to:

                  • Reduce preparation time

                  • Standardize manufacturing methods

                  • Simplify management of complex projects

                  • Maximize material usage

                  • Improve cross-department integration

                  In a context where every minute saved and every avoided error has a direct impact on profitability, the new features in SWOOD 2026 offer concrete tools to improve overall business performance.

                  Explore SWOOD 2026 with SOLIDXPERTS

                  Want to assess the impact of SWOOD 2026 on your design and manufacturing processes? The SOLIDXPERTS team can help you:

                  • Analyze your current methods

                  • Identify automation opportunities

                  • Demonstrate SWOOD 2026’s new features

                  • Develop a deployment strategy tailored to your manufacturing reality

                  Contact our SWOOD specialists today to discover how SWOOD 2026 can accelerate your digital transformation and increase your production efficiency.


                  Alain

                  Alain Provost

                  Senior Technical Sales Executive

                  X_green_halo

                  Any questions? Need help? Ask one of our experts.

                  Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

                    Managing Roles on the 3DEXPERIENCE Platform

                    BLOG

                    Managing Roles on the 3DEXPERIENCE Platform

                    [techtips_featured_image_shortcode]

                    More and more organizations are moving to the 3DEXPERIENCE platform to streamline collaboration, improve data management, and connect their teams. One of the most important pieces of a successful rollout is understanding how Roles work, how they’re assigned, and how licensing is managed.

                    In this article, we’ll walk through the full lifecycle of Role management, from inviting members to your tenant to assigning Roles individually or by group.

                    Platform Administrator Access

                    The steps outlined below require you to be a 3DEXPERIENCE Platform Administrator for your company tenant.

                    If you don’t see the Platform Management or Members Management dashboards:

                    • Reach out to your internal 3DEXPERIENCE administrator, or

                    • If you are the admin and still can’t access them, contact your technical support team to help resolve the issue.

                    Screenshot showing how to manage user roles and permissions on the 3DEXPERIENCE platform.

                    Members Control Center

                    Once you have the appropriate permissions, open the Members Control Center from:

                    • The Members Management Dashboard, or

                    • The Members tab within the Platform Management Dashboard

                    This is your main workspace for:

                    • Reviewing existing members

                    • Viewing available Roles and license counts

                    • Managing additional apps assigned to the tenant

                    3DEXPERIENCE platform interface displaying tools for managing user roles, access rights, and responsibilities.

                    Licensing Options (Before You Assign Roles)

                    Before assigning any Roles, it’s a good idea to review the licensing behavior for your tenant.

                    From the Members Control Center, select Configure Members Options.

                    There are two key settings to review:

                    1. License Expiration

                    We strongly recommend enabling Automatically ungrant expired roles from members or groups.
                    This ensures that:

                    • Roles are automatically removed when licenses expire

                    • Users don’t encounter access errors due to expired licensing

                    2. Invitations from Administrators

                    The option Allow administrators to grant roles without assigning automatically the associated license controls how external users access Roles:

                    • Enabled: external users can use their own licenses

                    • Disabled: licenses must come from your tenant

                    Taking a moment to configure these options upfront can prevent licensing issues down the road.

                    View of the 3DEXPERIENCE platform showing role configuration and assignment for team members.

                    Understanding Member Role Assignments

                    To see how these settings affect a specific user:

                    1. Go back to Invite & Grant Roles

                    2. Select Details for a member

                    Each Role represents a purchased license and unlocks access to specific apps and capabilities.

                    Key options include:

                    Assign License:

                    • Enabled → license is consumed from your tenant
                    • Disabled → external user uses a license from another tenant

                    Restrict Usage to the Platform:

                    • Enabled → license can only be used on this tenant
                    • Disabled → license can be used across tenants

                    User management dashboard in the 3DEXPERIENCE platform used to assign, modify, and monitor platform roles.

                    Assigning Roles to Members

                    To assign Roles:

                    1. Click View All to see every available Role

                    2. Use search if needed, by Role name or trigram (for example, UES for Collaborative Designer for SOLIDWORKS)

                    3. Set the licensing options for the Role

                    4. Select the checkbox to grant it

                    3DEXPERIENCE administration tools used to manage user roles and access permissions.

                    If a Role requires prerequisites, you’ll be prompted to add them automatically. Simply confirm to proceed.

                    3DEXPERIENCE platform screen illustrating the organization of user roles and permissions within a company.

                    Inviting New Members

                    Roles can also be assigned during the invitation process. You can invite users from:

                    • My Platform Control Center

                    Centralized management of user roles, licenses, and access permissions within the 3DEXPERIENCE environment.

                    • Members Control Center

                    3DEXPERIENCE administration interface used to define user roles, responsibilities, and access levels.

                    Steps to Invite a Member:

                    1. Click Invite Member

                    2. Enter one or more email addresses

                    3. Choose user rights:

                    • Member
                    • Tenant Administrator (always a good idea to have a backup admin)
                    • External User

                    4. Optionally include a personal message

                    5. Click Next to select Roles

                    User management on the 3DEXPERIENCE platform with role assignment and application access control.

                    Choose the Roles to assign, review any prerequisite requirements, and configure licensing options if needed.

                    3DEXPERIENCE administration panel showing user profile management and associated role configuration.

                    In the final step, select any available apps and click Invite to complete the process.

                    3DEXPERIENCE interface for user role management with options to assign and update permissions.

                    Requesting Roles (User-Initiated)

                    Users can also request Roles directly from the platform:

                    1. Open the Compass

                    2. Go to Company

                    3DEXPERIENCE administration screen displaying a user list and their assigned roles configuration.

                    3. Select a Role and click Request

                    3DEXPERIENCE interface displaying role and access management settings for platform users.

                    The administrator will receive both a platform notification and an email.

                    Approving Role Requests:

                    1. Open the Members Control Center

                    2. Select Manage Requests

                    3. Open the request tile

                    3DEXPERIENCE configuration screen showing selection and assignment of user roles based on permissions.

                    4. Click Accept to grant the Role

                    3DEXPERIENCE administration interface showing user role management with filtering and assignment options.

                    Assigning Roles Using Groups

                    Groups are a powerful way to manage Roles at scale.

                    Creating a User Group:

                    1. Open the User Groups app (via the Compass)

                    3DEXPERIENCE dashboard displaying available roles and their assignment to platform users.

                    2. Click Create Group

                    3DEXPERIENCE management screen showing role selection and customization of access rights for each user.

                    3. Enter a name and description

                    • Tip: name the group after the Role it will receive

                    3DEXPERIENCE administration console for viewing, assigning, and managing user roles in a collaborative environment.

                    4. Click Create

                    5. Add members to the group and save

                    3DEXPERIENCE interface showing user role management with search, filtering, and permission assignment options.

                    Assigning Roles to a Group:

                    1. Go to Members Control Center → Invite & Grant Roles

                    2. Open Details for the desired Role

                    3DEXPERIENCE interface displaying user role management with a preview of permissions associated with each role.

                    3. Switch to the Groups tab

                    4. Select the appropriate group and confirm any prerequisite Roles

                    3DEXPERIENCE administration screen illustrating user role management and access rights structure within the platform.

                    Any user added to the group will automatically receive the assigned Role.

                    Removing Members from the Tenant

                    When a user no longer needs access:

                    1. Open the Members Control Center

                    2. Select Details for the member

                    3. Go to Settings

                    4. Remove the user from the tenant

                    3DEXPERIENCE user role management interface showing available roles and their assignment to organization members.

                    Warning Make sure to remove any roles that have been assigned to that user before removing them from the platform to avoid any issues with future re-assignment.

                    check mark button The best practice is to use User Groups to assign roles, that way you can simply remove a user from the User Group to remove their roles.

                    Final Thoughts

                    Managing Roles effectively is key to getting the most value from the 3DEXPERIENCE platform. With the right setup, you can ensure users have exactly the tools they need no more, no less while keeping licensing clean and manageable.

                    Looking to go further?

                    Your platform should work the way your team works and we’re here to help make that happen.


                    Michael Habrich

                    3DEXPERIENCE Specialist

                    X_green_halo

                    Any questions? Need help? Ask one of our experts.

                    Whether you’re ready to get started or just have a few more questions, you can contact us toll-free:

                        Download

                          Download

                            Download
